Problem #2 Column AB in the braced frame is a W14x311. The height of the first floor is 29 ft. Based on an elastic criti

Post by answerhappygod »

Problem 2 Column Ab In The Braced Frame Is A W14x311 The Height Of The First Floor Is 29 Ft Based On An Elastic Criti 1
Problem 2 Column Ab In The Braced Frame Is A W14x311 The Height Of The First Floor Is 29 Ft Based On An Elastic Criti 1 (92.47 KiB) Viewed 19 times

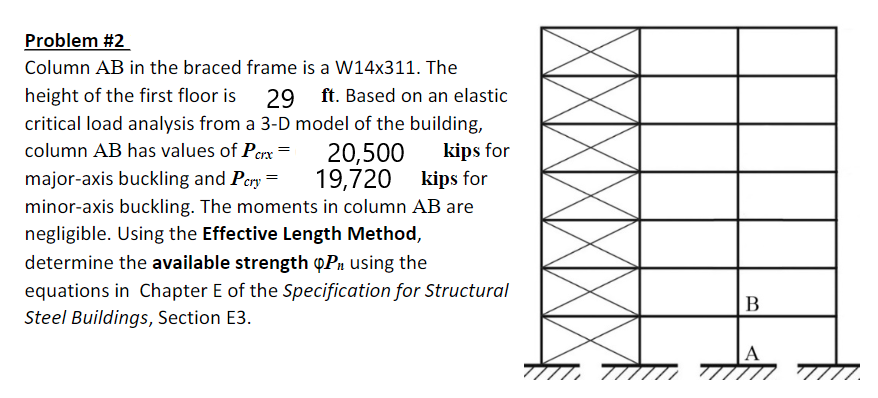

Problem #2 Column AB in the braced frame is a W14x311. The height of the first floor is 29 ft. Based on an elastic critical load analysis from a 3-D model of the building, column AB has values of Pcrx = 20,500 kips for major-axis buckling and Pcry = 19,720 kips for minor-axis buckling. The moments in column AB are negligible. Using the Effective Length Method, determine the available strength Pn using the equations in Chapter E of the Specification for Structural Steel Buildings, Section E3. B
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
