Problem #2 (25 points) Column AB in the braced frame is a W14x311. The height of the first floor is ( 20 + a) ft. Based

Post by answerhappygod »

Problem 2 25 Points Column Ab In The Braced Frame Is A W14x311 The Height Of The First Floor Is 20 A Ft Based 1
Problem 2 25 Points Column Ab In The Braced Frame Is A W14x311 The Height Of The First Floor Is 20 A Ft Based 1 (125.03 KiB) Viewed 37 times
b=0

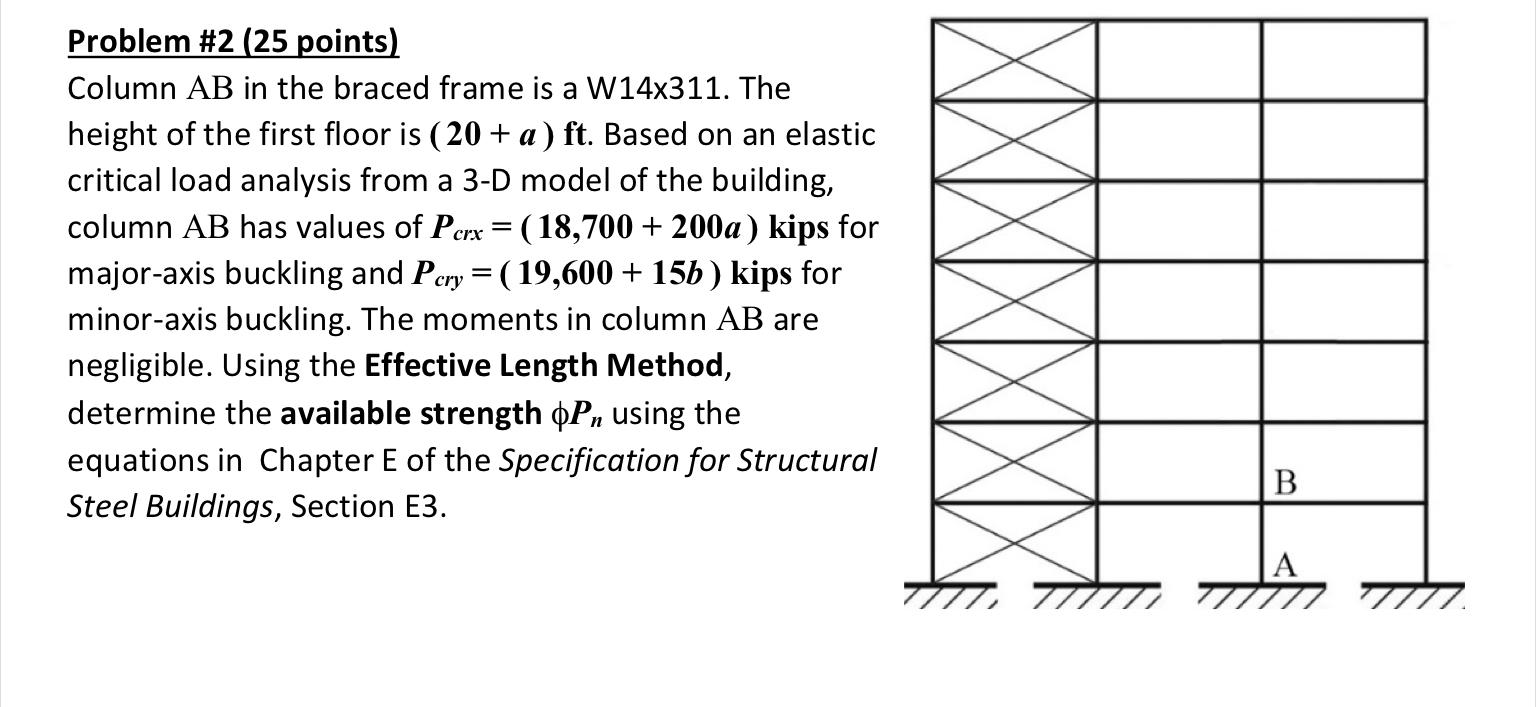

Problem #2 (25 points) Column AB in the braced frame is a W14x311. The height of the first floor is ( 20 + a) ft. Based on an elastic critical load analysis from a 3-D model of the building, column AB has values of Perx = (18,700 + 200a) kips for major-axis buckling and Pcry = (19,600 + 15b) kips for minor-axis buckling. The moments in column AB are negligible. Using the Effective Length Method, determine the available strength OPn using the quations in Ch E of the Specification for Structural Steel Buildings, Section E3. B 7, JA,
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
