Question #2 (20 marks) Calculate the forces in all the members (numbered I to 14) of the structure given below using the

Post by answerhappygod »

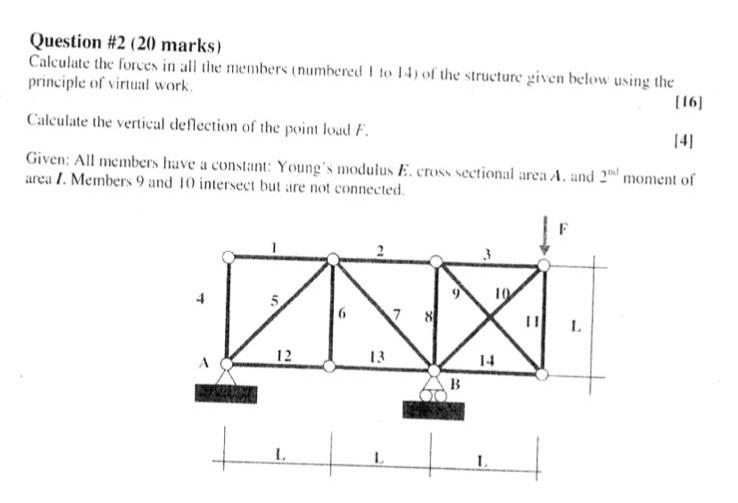

Question 2 20 Marks Calculate The Forces In All The Members Numbered I To 14 Of The Structure Given Below Using The 1
Question 2 20 Marks Calculate The Forces In All The Members Numbered I To 14 Of The Structure Given Below Using The 1 (28.62 KiB) Viewed 20 times
Question #2 (20 marks) Calculate the forces in all the members (numbered I to 14) of the structure given below using the principle of virtual work [16] Caleulate the vertical deflection of the point loaul F. 141 Given: All members have a constant: Young's modulus E. cross sectional area A. and 2 moment of area I. Members 9 and 10 intersect but are not connected F 6 7 8 11 L 12 14 B 1 L 1
