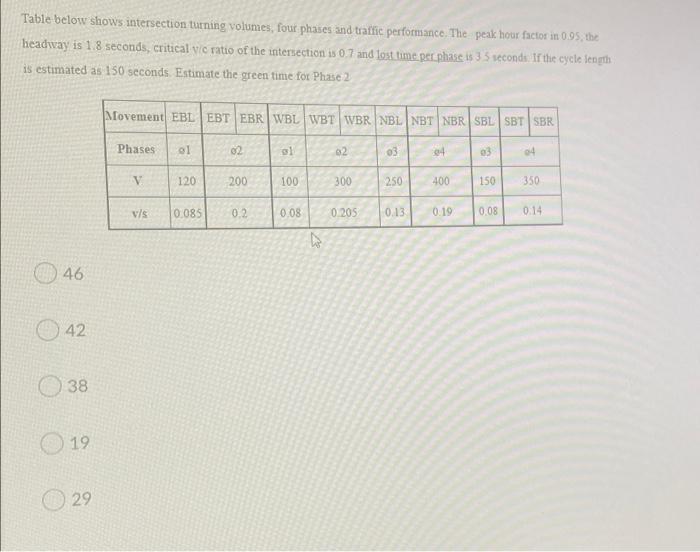

Table below shows intersection turning volumes, four phases and traffic performance. The peak hour factor in 0.95, the headway is 1.8 seconds, critical vie ratio of the intersection is 0.7 and lost time per phase is 35 seconds. If the cycle length is estimated as 150 seconds. Estimate the green time for Phase 2 Movement EBL EBT EBR WBL WBT WBR NBL NBT NBR SBL SBT SBR Phases ol 02 1 62 03 4 04 V 120 200 100 300 250 400 150 350 v/s 0.085 0.2 0.08 0.205 0.13 0.19 0.08 0.14 7 46 0 42 38 19 29
