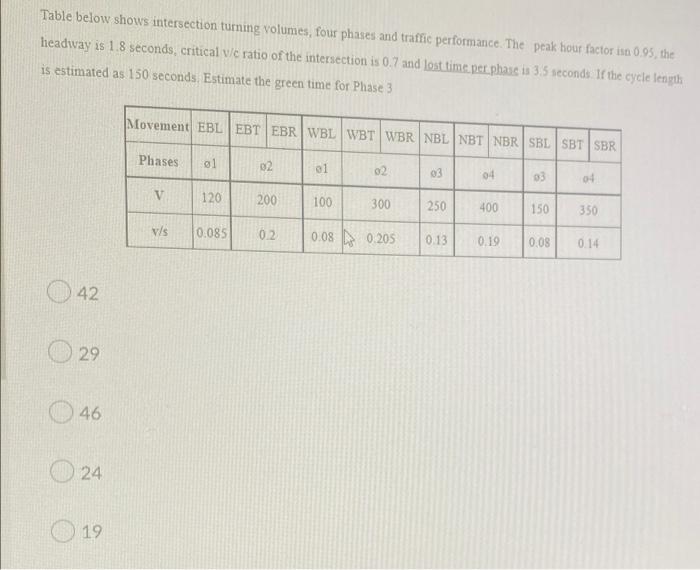

Table below shows intersection turning volumes, four phases and traffic performance. The peak hour factor is 0.95, the headway is 1.8 seconds, critical V/c ratio of the intersection is 0.7 and lost time per phase is 35 seconds. If the cycle length is estimated as 150 seconds Estimate the green time for Phase 3 Movement EBL EBT EBR WBL WBT WBR NBL NBT NBR SBL SBT SBR Phases 01 02 61 02 04 03 04 V 120 200 100 300 250 400 150 350 v/s 0.085 0.2 0.08 0.205 0.13 0.19 0.08 0.14 42 29 46 24 019
