Problem 1: A surveyor has determined that the intersection angle of a particular highway curve is 35.5'. In addition, sh

Post by answerhappygod »

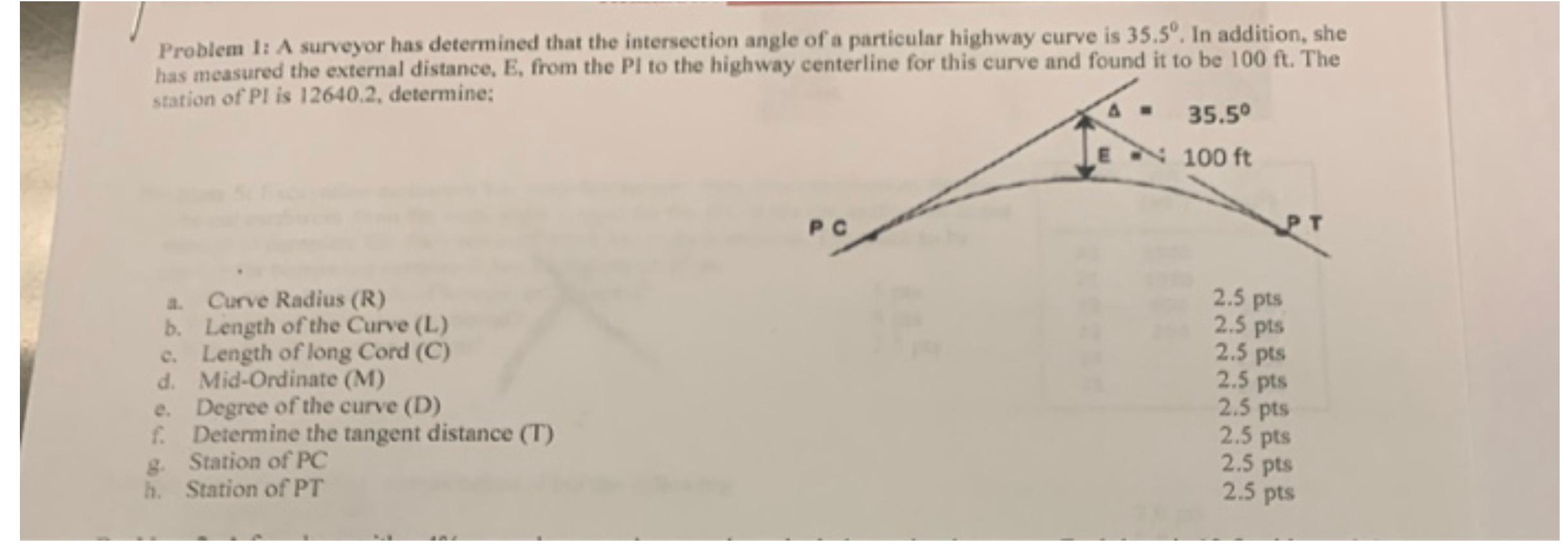

Problem 1 A Surveyor Has Determined That The Intersection Angle Of A Particular Highway Curve Is 35 5 In Addition Sh 1
Problem 1 A Surveyor Has Determined That The Intersection Angle Of A Particular Highway Curve Is 35 5 In Addition Sh 1 (94.25 KiB) Viewed 30 times
Problem 1: A surveyor has determined that the intersection angle of a particular highway curve is 35.5'. In addition, she has measured the external distance, E, from the PI to the highway centerline for this curve and found it to be 100 ft. The station of Pl is 12640.2, determine: 35.5° 100 ft PC a. Curve Radius (R) b. Length of the Curve (L) c. Length of long Cord (C) d. Mid-Ordinate (M) e. Degree of the curve (D) f. Determine the tangent distance (T) g. Station of PC h. Station of PT 2.5 pts 2.5 pts 2.5 pts 2.5 pts 2.5 pts 2.5 pts 2.5 pts 2.5 pts
