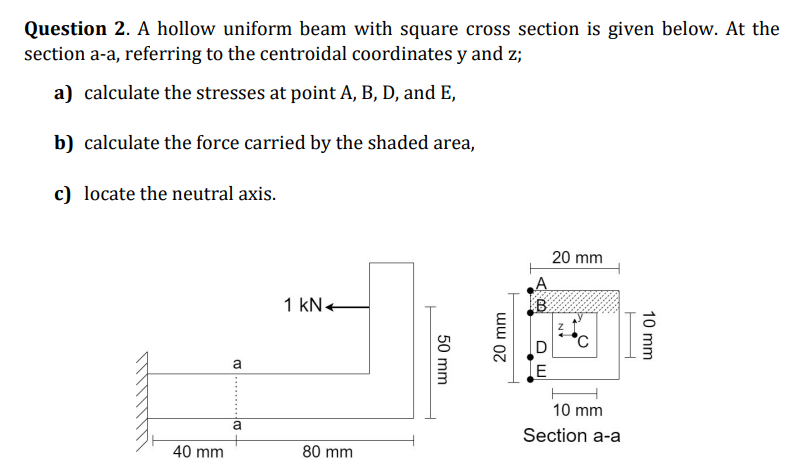

Question 2. A hollow uniform beam with square cross section is given below. At the section a-a, referring to the centroidal coordinates y and z; a) calculate the stresses at point A, B, D, and E, b) calculate the force carried by the shaded area, c) locate the neutral axis. 20 mm 1 kNE B 2oC 20 mm 10 mm 50 mm a D E a + 10 mm Section a-a 40 mm 80 mm
