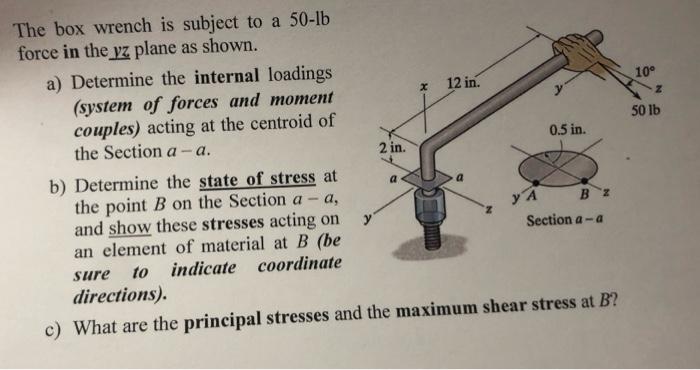

10° x 50 lb 2 in. The box wrench is subject to a 50-lb force in the yz plane as shown. a) Determine the internal loadings 12 in. (system of forces and moment у couples) acting at the centroid of the Section a-a. 0.5 in. b) Determine the state of stress at the point B on the Section a a, y A B and show these stresses acting on Section a-a an element of material at B (be sure to indicate coordinate directions). c) What are the principal stresses and the maximum shear stress at B? a
