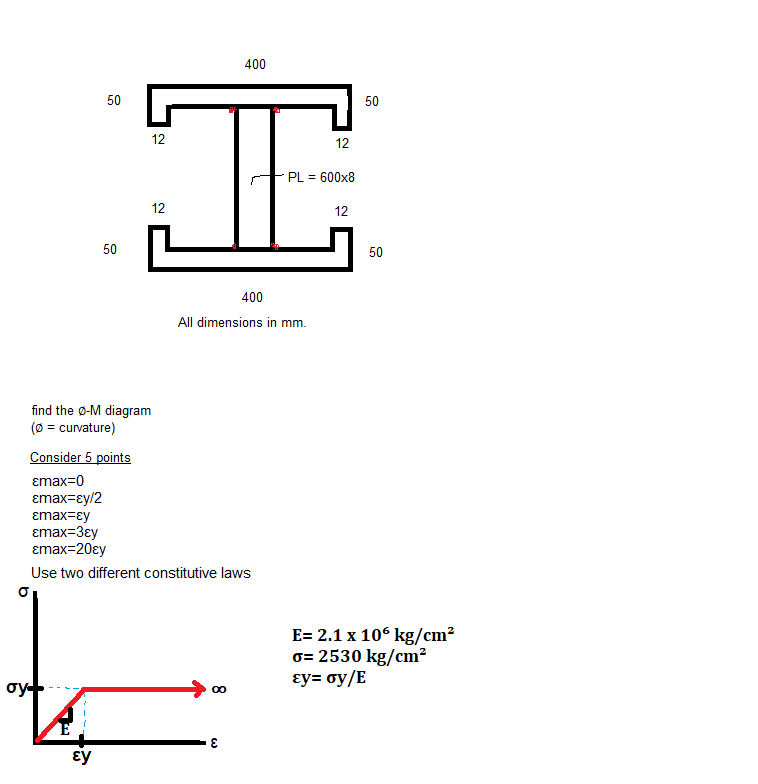

400 50 50 12 12 1 PL = 600x8 12 12 50 50 400 All dimensions in mm. find the O-M diagram (0 = curvature) Consider 5 points Emax=0 Emax=ɛy/2 Emax=ey Emax=3ey Emax=20ɛy Use two different constitutive laws E= 2.1 x 100 kg/cm² o= 2530 kg/cm² ey= oy/E oy+ 00 E ку
o Bilinear with hardening 8 oy 0.05*E E w ху M[ton-m] Plot both solutions in the same graph -@[1/mm]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
