An L frame shown in the figure below has column AB with the EA value of 50,000 kN and beam BC with axial stiffness equal
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
An L frame shown in the figure below has column AB with the EA value of 50,000 kN and beam BC with axial stiffness equal

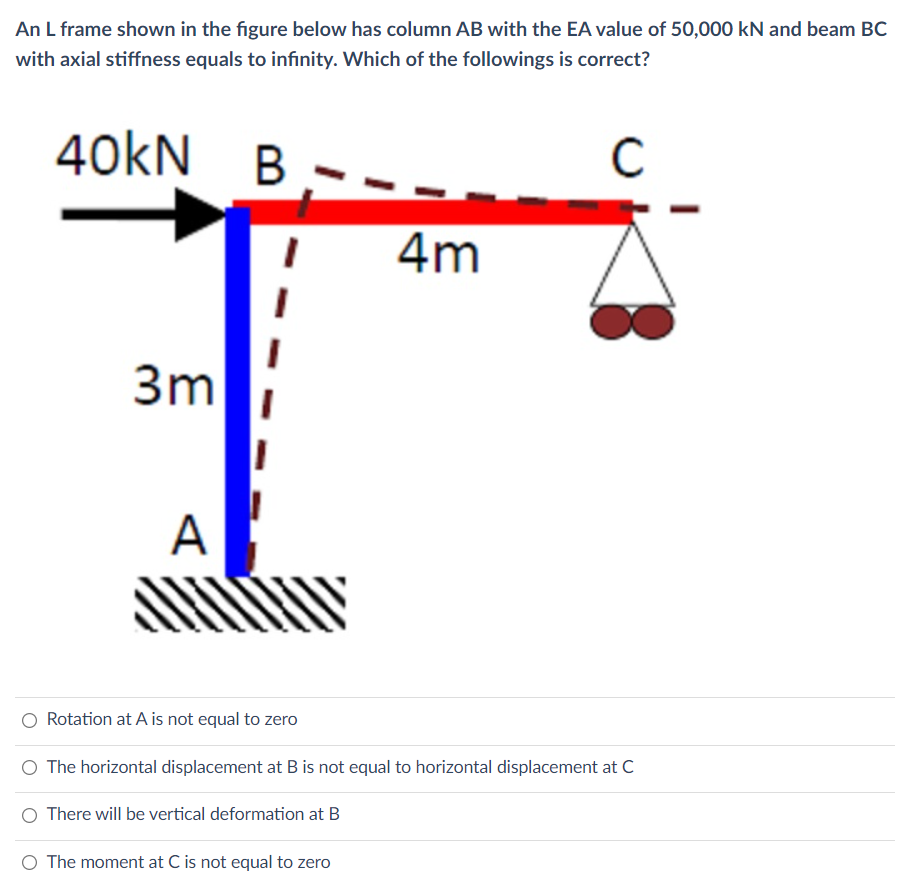

An L frame shown in the figure below has column AB with the EA value of 50,000 kN and beam BC with axial stiffness equals to infinity. Which of the followings is correct? 40kn B С 4m 3m A Rotation at A is not equal to zero The horizontal displacement at B is not equal to horizontal displacement at C There will be vertical deformation at B O The moment at C is not equal to zero
