- Instruction Answer The Problem Set Given Provide A Complete And Clear Solutions With Appropriate Illustrations Expres 1 (32.64 KiB) Viewed 14 times
answer this question within 5mins i will give you upvote

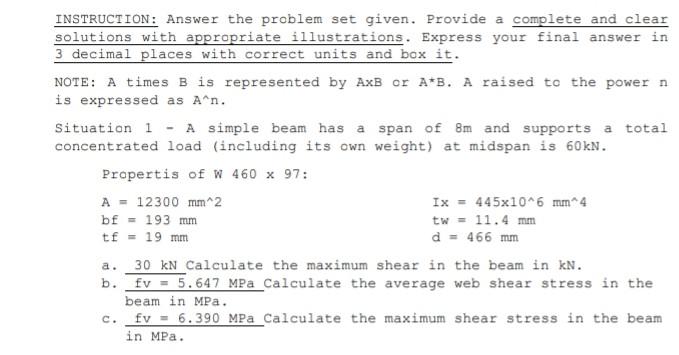

INSTRUCTION: Answer the problem set given. Provide a complete and clear solutions with appropriate illustrations. Express your final answer in 3 decimal places with correct units and box it. NOTE: A times B is represented by AxB or A*B. A raised to the power n is expressed as A'n. Situation 1 - A simple beam has a span of 8m and supports a total concentrated load (including its own weight) at midspan is 60kN. Propertis of W 460 x 97: A = 12300 mm^2 Ix = 445x10^6 mm*4 bf = 193 mm tw = 11.4 mm tf = 19 mm d = 466 mm 30 kN Calculate the maximum shear in the beam in kN. fv = 5.647 MPa Calculate the average web shear stress in the beam in MPa. fv = 6.390 MPa Calculate the maximum shear stress in the beam in MPa. a. b. c.
