Q. 2 (B) What is the degree of indeterminancy for the following beam assuming A as fixed and B as a roller? Show the pri

Post by answerhappygod »

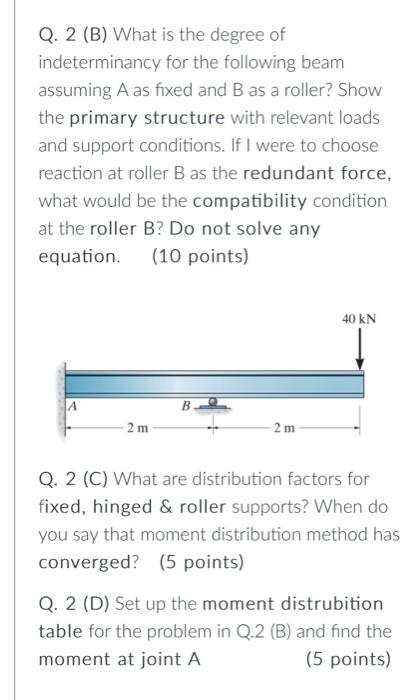

Q 2 B What Is The Degree Of Indeterminancy For The Following Beam Assuming A As Fixed And B As A Roller Show The Pri 1
Q 2 B What Is The Degree Of Indeterminancy For The Following Beam Assuming A As Fixed And B As A Roller Show The Pri 1 (40.88 KiB) Viewed 20 times
Q. 2 (B) What is the degree of indeterminancy for the following beam assuming A as fixed and B as a roller? Show the primary structure with relevant loads and support conditions. If I were to choose reaction at roller B as the redundant force, what would be the compatibility condition at the roller B? Do not solve any equation. (10 points) 40 KN A -2 m 2 m Q. 2 (C) What are distribution factors for fixed, hinged & roller supports? When do you say that moment distribution method has converged? (5 points) Q. 2 (D) Set up the moment distrubition table for the problem in Q.2 (B) and find the moment at joint A (5 points)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
