Fig. 1 shows the cross-section of a concrete T-beam located inside a residential building. The beam is flexurally reinfo

[answerhappygod]

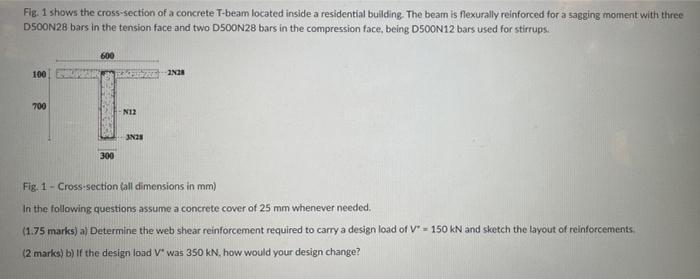

Fig 1 Shows The Cross Section Of A Concrete T Beam Located Inside A Residential Building The Beam Is Flexurally Reinfo 1 (21.26 KiB) Viewed 19 times

Fig. 1 shows the cross-section of a concrete T-beam located inside a residential building. The beam is flexurally reinforced for a sagging moment with three DSOON28 bars in the tension face and two DSOON28 bars in the compression face, being D500N12 bars used for stirrups. 600 100 EUR -22 700 N12 JN33 300 Fig. 1 - Cross-section (all dimensions in mm) In the following questions assume a concrete cover of 25 mm whenever needed. (1.75 marks) a Determine the web shear reinforcement required to carry a design load of V* = 150 kN and sketch the layout of reinforcements. (2 marks) b) If the design load Vwas 350 KN, how would your design change?
