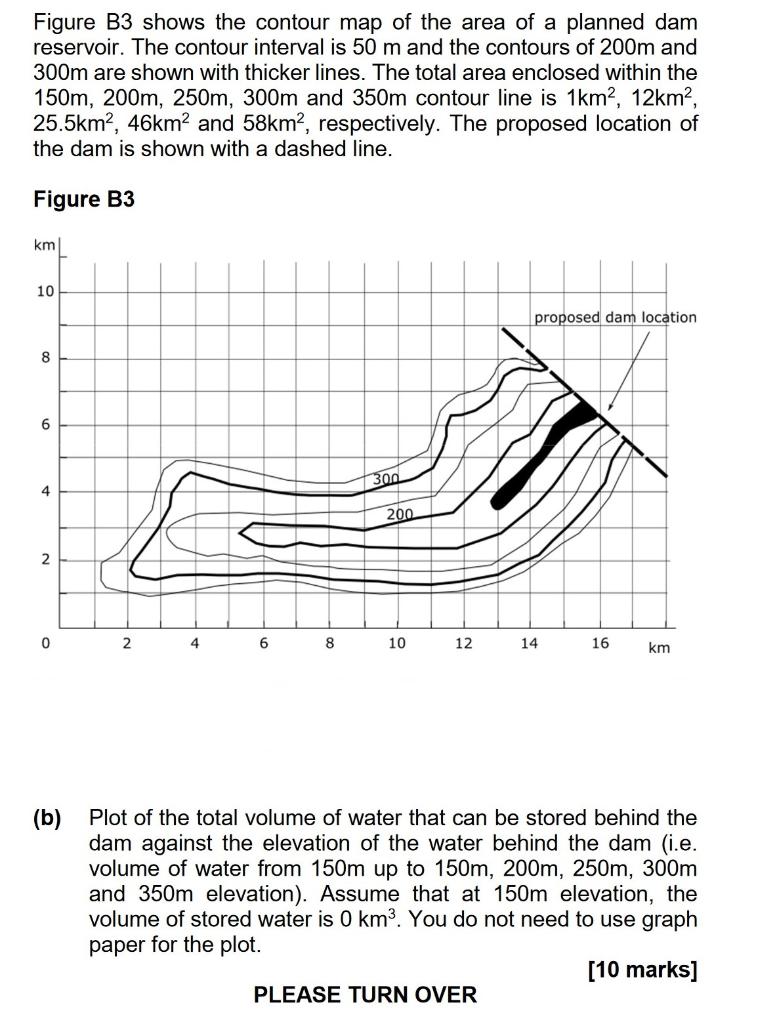

- Figure B3 Shows The Contour Map Of The Area Of A Planned Dam Reservoir The Contour Interval Is 50 M And The Contours Of 1 (115.39 KiB) Viewed 22 times
Figure B3 shows the contour map of the area of a planned dam reservoir. The contour interval is 50 m and the contours of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Figure B3 shows the contour map of the area of a planned dam reservoir. The contour interval is 50 m and the contours of
Figure B3 shows the contour map of the area of a planned dam reservoir. The contour interval is 50 m and the contours of 200m and 300m are shown with thicker lines. The total area enclosed within the 150m, 200m, 250m, 300m and 350m contour line is 1km2, 12km2, 25.5km², 46km2 and 58km², respectively. The proposed location of the dam is shown with a dashed line. Figure B3 km 10 proposed dam location 8 6 300 4 200 2 0 2 4 6 8 10 12 14 16 km (b) Plot of the total volume of water that can be stored behind the dam against the elevation of the water behind the dam (i.e. volume of water from 150m up to 150m, 200m, 250m, 300m and 350m elevation). Assume that at 150m elevation, the volume of stored water is 0 km? You do not need to use graph paper for the plot. [10 marks] PLEASE TURN OVER
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
