A rectangular beam has a width of 280mm, effective depth of 430mm, fc' = 26MPa, fy = 280MPa. Use 4-20mm diameter rebars.

Post by answerhappygod »

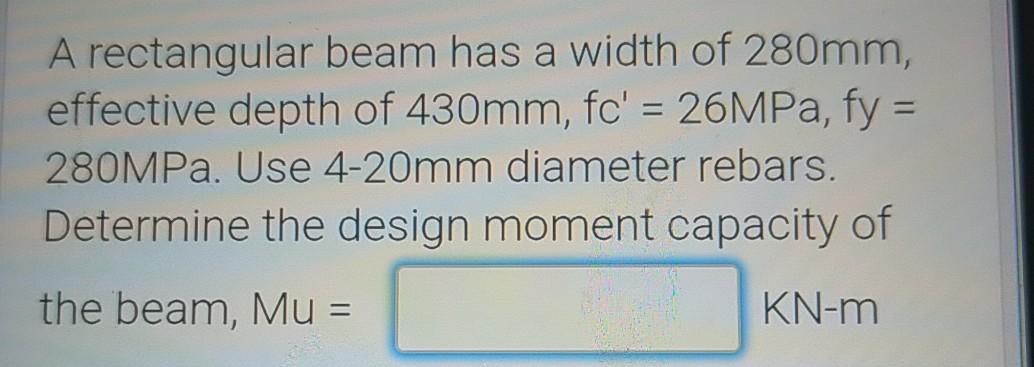

A Rectangular Beam Has A Width Of 280mm Effective Depth Of 430mm Fc 26mpa Fy 280mpa Use 4 20mm Diameter Rebars 1
A Rectangular Beam Has A Width Of 280mm Effective Depth Of 430mm Fc 26mpa Fy 280mpa Use 4 20mm Diameter Rebars 1 (46.41 KiB) Viewed 20 times
do not round off in between solns.i need it asap. ty
A rectangular beam has a width of 280mm, effective depth of 430mm, fc' = 26MPa, fy = 280MPa. Use 4-20mm diameter rebars. Determine the design moment capacity of the beam, Mu = KN-m
