= a The continuous beam shown in the diagram has lengths L1=4 m and L2=3 m. The beam is subjected to a uniformly distrib
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= a The continuous beam shown in the diagram has lengths L1=4 m and L2=3 m. The beam is subjected to a uniformly distrib

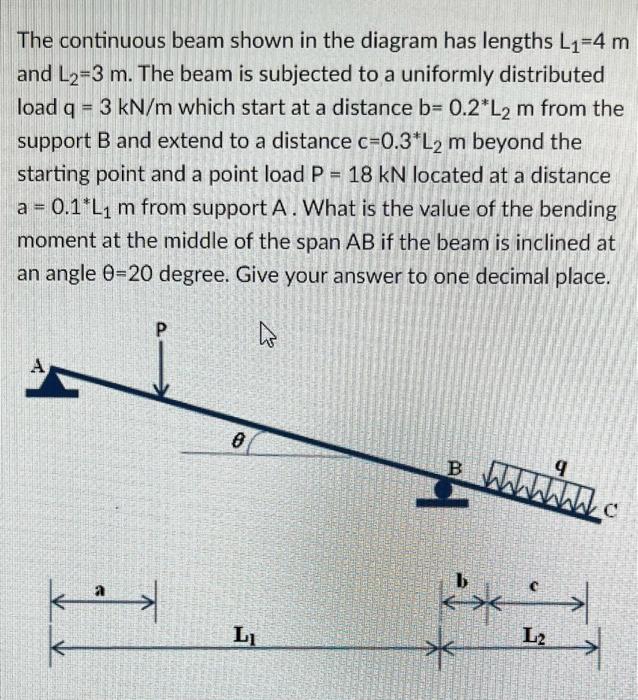

= a The continuous beam shown in the diagram has lengths L1=4 m and L2=3 m. The beam is subjected to a uniformly distributed load q = 3 kN/m which start at a distance b=0.2*L2 m from the support B and extend to a distance c=0.3*L2 m beyond the starting point and a point load P = 18 kN located at a distance a = 0.1*L1 m from support A. What is the value of the bending moment at the middle of the span AB if the beam is inclined at an angle 0=20 degree. Give your answer to one decimal place. P. ET B 9 c a_ Kesk LI L2
