PART A: Determine the magnitude of the internal normal force at
point D. Express your answer to three significant figures and
include the appropriate units.
PART B: Determine the magnitude of the internal shear force at
point D. Express your answer to three significant figures and
include the appropriate units.
PART C: Determine the magnitude of the internal moment at point
D. Express your answer to three significant figures and include the
appropriate units.

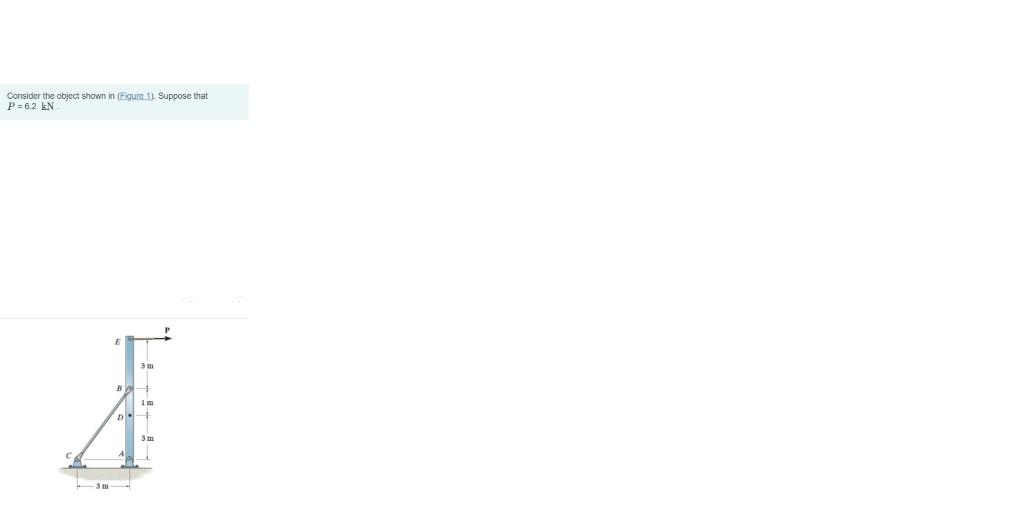

Part A Determine The Magnitude Of The Internal Normal Force At Point D Express Your Answer To Three Significant Figure 1 (12.97 KiB) Viewed 15 times
Consider the object shown in Figure 1). Suppose that P = 6.2 kN 3 B 1 m D. 3
