3k 3k 3k 3 k 3k E F G K 4 ft 1 D B 6 ft 6 ft 6 ft sko 6 ft 6 ft 6 ft For the CE 160 lab truss shown above, find: 1. (1 p

[answerhappygod]

3k 3k 3k 3 K 3k E F G K 4 Ft 1 D B 6 Ft 6 Ft 6 Ft Sko 6 Ft 6 Ft 6 Ft For The Ce 160 Lab Truss Shown Above Find 1 1 P 1 (36.3 KiB) Viewed 49 times

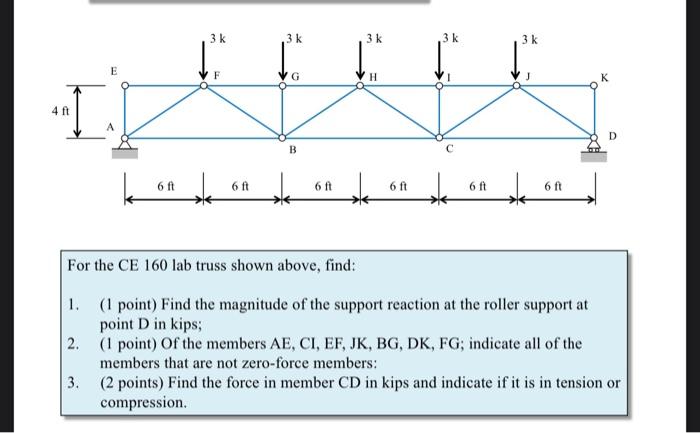

3k 3k 3k 3 k 3k E F G K 4 ft 1 D B 6 ft 6 ft 6 ft sko 6 ft 6 ft 6 ft For the CE 160 lab truss shown above, find: 1. (1 point) Find the magnitude of the support reaction at the roller support at point D in kips; 2. ( point) of the members AE, CI, EF, JK, BG, DK, FG; indicate all of the members that are not zero-force members: 3. (2 points) Find the force in member CD in kips and indicate if it is in tension or compression
