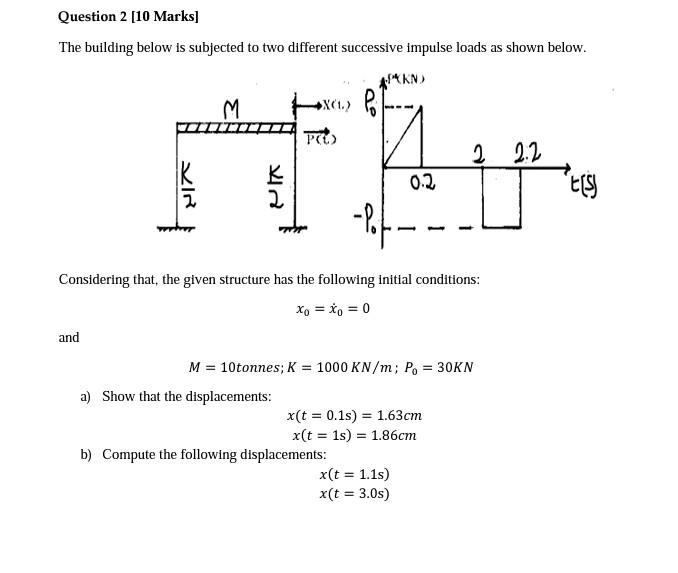

Question 2 [10 Marks] The building below is subjected to two different successive impulse loads as shown below. "KN) M.

[answerhappygod]

Question 2 10 Marks The Building Below Is Subjected To Two Different Successive Impulse Loads As Shown Below Kn M 1 (32.33 KiB) Viewed 22 times

Question 2 [10 Marks] The building below is subjected to two different successive impulse loads as shown below. "KN) M. -X(1.) po Pet) 4 2 2.2 VIR K 2 0.2 E(S) -Pot = Considering that, the given structure has the following initial conditions: X= = 0 and M = 10tonnes; K = 1000 KN/m; Po = 30KN a) Show that the displacements: x(t = 0.1s) = 1.63cm x(t = 1s) = 1.86cm b) Compute the following displacements: x(t = 1.1s) x(t = 3.0s) =
