1. For each of the following network diagrams, determine both the critical path and the expected proj- ect duration. The

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1. For each of the following network diagrams, determine both the critical path and the expected proj- ect duration. The

Post by answerhappygod »

1 For Each Of The Following Network Diagrams Determine Both The Critical Path And The Expected Proj Ect Duration The 1
1 For Each Of The Following Network Diagrams Determine Both The Critical Path And The Expected Proj Ect Duration The 1 (28.1 KiB) Viewed 21 times

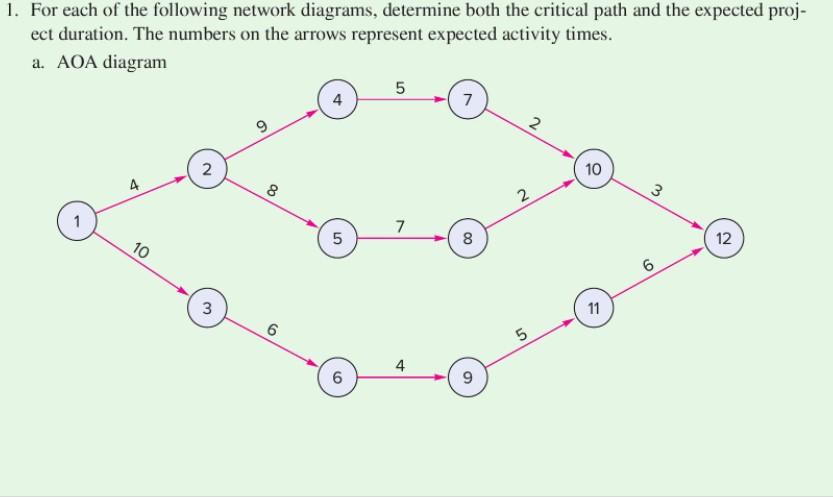

1. For each of the following network diagrams, determine both the critical path and the expected proj- ect duration. The numbers on the arrows represent expected activity times. a. AOA diagram 5 7 4 2 2 10 4 8 3 2 1 7 Ол 10 5 8 12 6 3 11 6 5 4 6 9
b. AON diagram 3 3 18 4 4 N 10 6 5 5 1 13 3 2. 9 8 9 11 7
d. AON diagram 7 8 00 A D 3 Start B E (End) 5 7 C F G G
