1) 10.0 cm 15.0 cm 12 IA IB 15 A 12 A IC 27 A IA IB IC Three parallel conductors A, B, and C are arranged as shown. Cond

[answerhappygod]

1 10 0 Cm 15 0 Cm 12 Ia Ib 15 A 12 A Ic 27 A Ia Ib Ic Three Parallel Conductors A B And C Are Arranged As Shown Cond 1 (139.02 KiB) Viewed 29 times

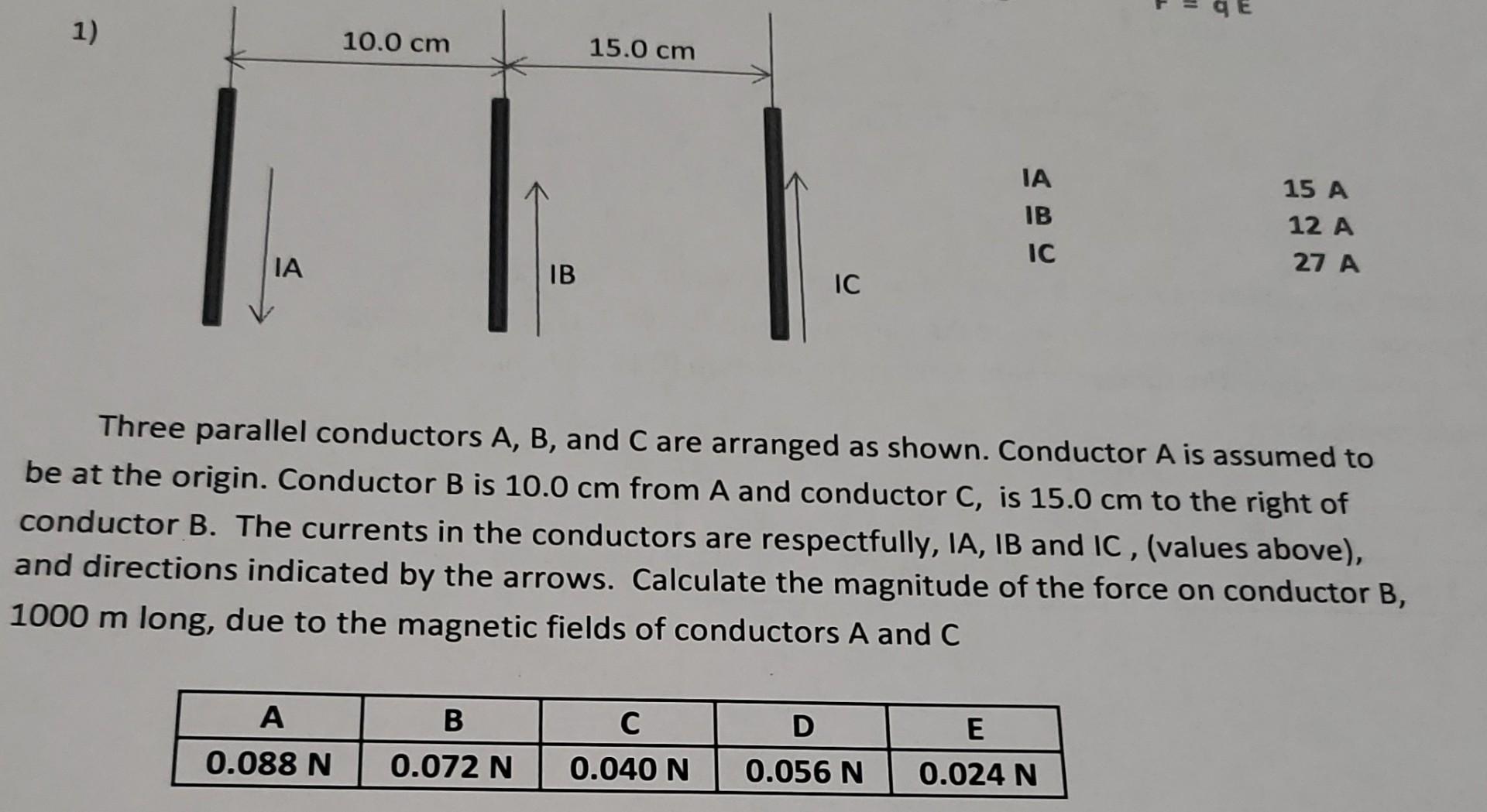

1) 10.0 cm 15.0 cm 12 IA IB 15 A 12 A IC 27 A IA IB IC Three parallel conductors A, B, and C are arranged as shown. Conductor A is assumed to be at the origin. Conductor B is 10.0 cm from A and conductor C, is 15.0 cm to the right of conductor B. The currents in the conductors are respectfully, IA, IB and IC, (values above), and directions indicated by the arrows. Calculate the magnitude of the force on conductor B, 1000 m long, due to the magnetic fields of conductors A and C A B C D E 0.088 N 0.072 N 0.040 N 0.056 N 0.024 N
