= In the circuit below, all four resistors are identical (R₁ = R₂ = R3 = R₁ = R) and the battery has a voltage of 5.13 V

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

= In the circuit below, all four resistors are identical (R₁ = R₂ = R3 = R₁ = R) and the battery has a voltage of 5.13 V

Post by answerhappygod »

In The Circuit Below All Four Resistors Are Identical R R R3 R R And The Battery Has A Voltage Of 5 13 V 1
In The Circuit Below All Four Resistors Are Identical R R R3 R R And The Battery Has A Voltage Of 5 13 V 1 (90.46 KiB) Viewed 32 times

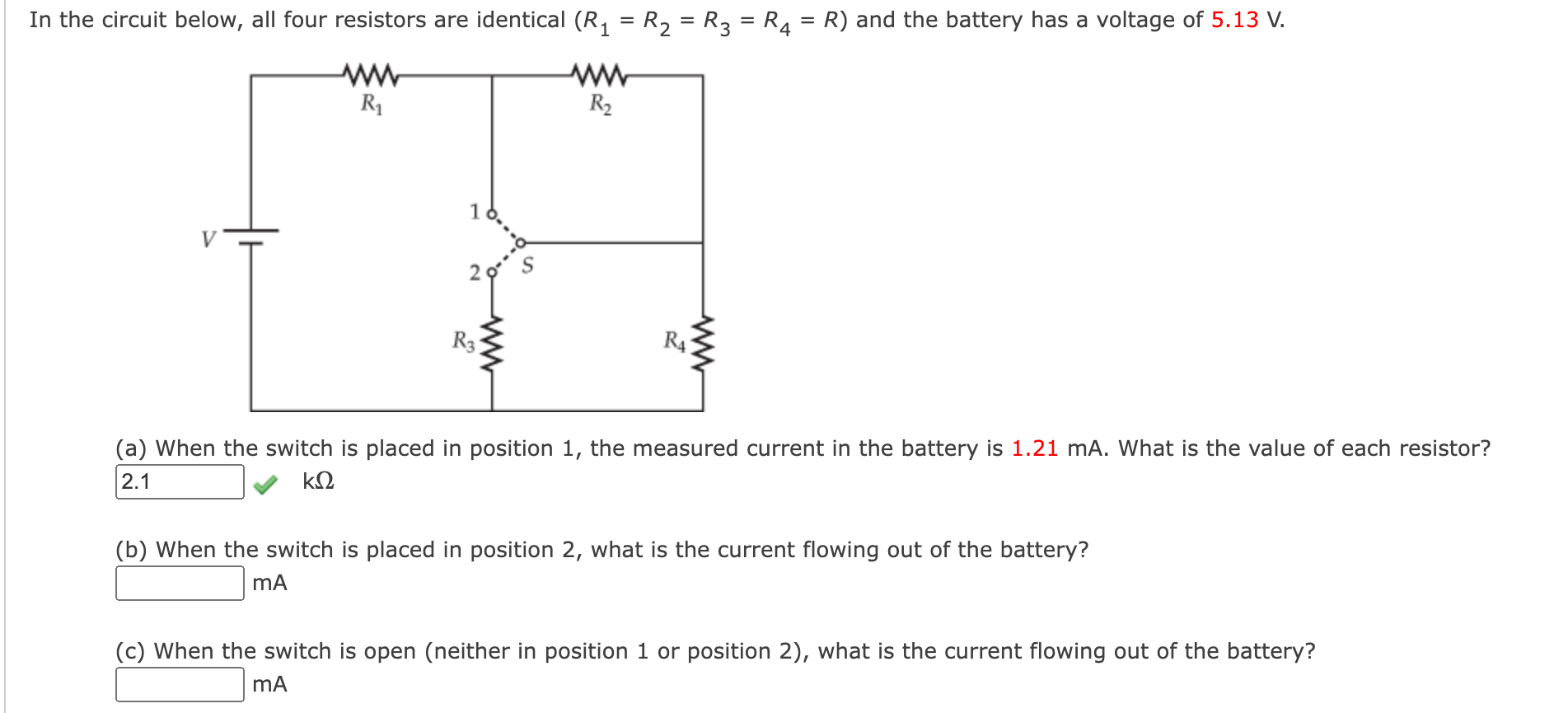

= In the circuit below, all four resistors are identical (R₁ = R₂ = R3 = R₁ = R) and the battery has a voltage of 5.13 V. R₁ R₂ (a) When the switch is placed in position 1, the measured current in the battery is 1.21 mA. What is the value of each resistor? 2.1 ΚΩ (b) When the switch is placed in position 2, what is the current flowing out of the battery? mA (c) When the switch is open (neither in position 1 or position 2), what is the current flowing out of the battery? mA 2 www R31 R4 ww
