(a) For the circuit in Figure B3(a), apply the Kirchhoff's rules to find V₁, I2, and I3. (6 marks) 1₁=2A 13 R₂ = 60 V₂ =

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(a) For the circuit in Figure B3(a), apply the Kirchhoff's rules to find V₁, I2, and I3. (6 marks) 1₁=2A 13 R₂ = 60 V₂ =

Post by answerhappygod »

A For The Circuit In Figure B3 A Apply The Kirchhoff S Rules To Find V I2 And I3 6 Marks 1 2a 13 R 60 V 1
A For The Circuit In Figure B3 A Apply The Kirchhoff S Rules To Find V I2 And I3 6 Marks 1 2a 13 R 60 V 1 (172.54 KiB) Viewed 27 times

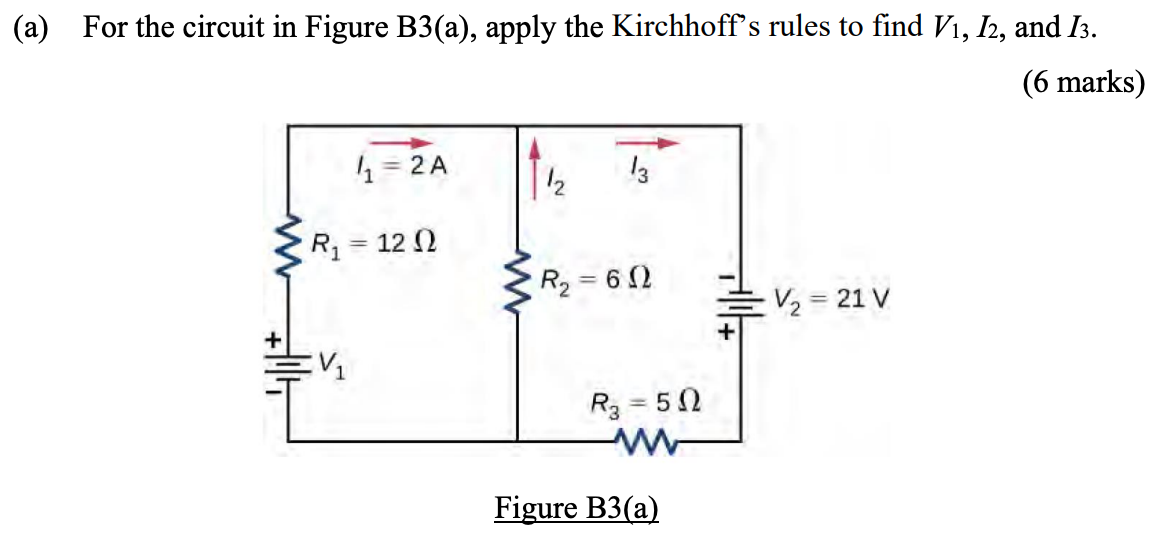

(a) For the circuit in Figure B3(a), apply the Kirchhoff's rules to find V₁, I2, and I3. (6 marks) 1₁=2A 13 R₂ = 60 V₂ = 21 V R₁ = 120 EV₁ R₂ = 50 Figure B3(a)
