Question 2 us1 The 2.5 Mg rear-wheel drive skid loader has a centre of mass at G. The mass of the crate as m = 250 kg. T

[answerhappygod]

Question 2 Us1 The 2 5 Mg Rear Wheel Drive Skid Loader Has A Centre Of Mass At G The Mass Of The Crate As M 250 Kg T 1 (87.74 KiB) Viewed 17 times

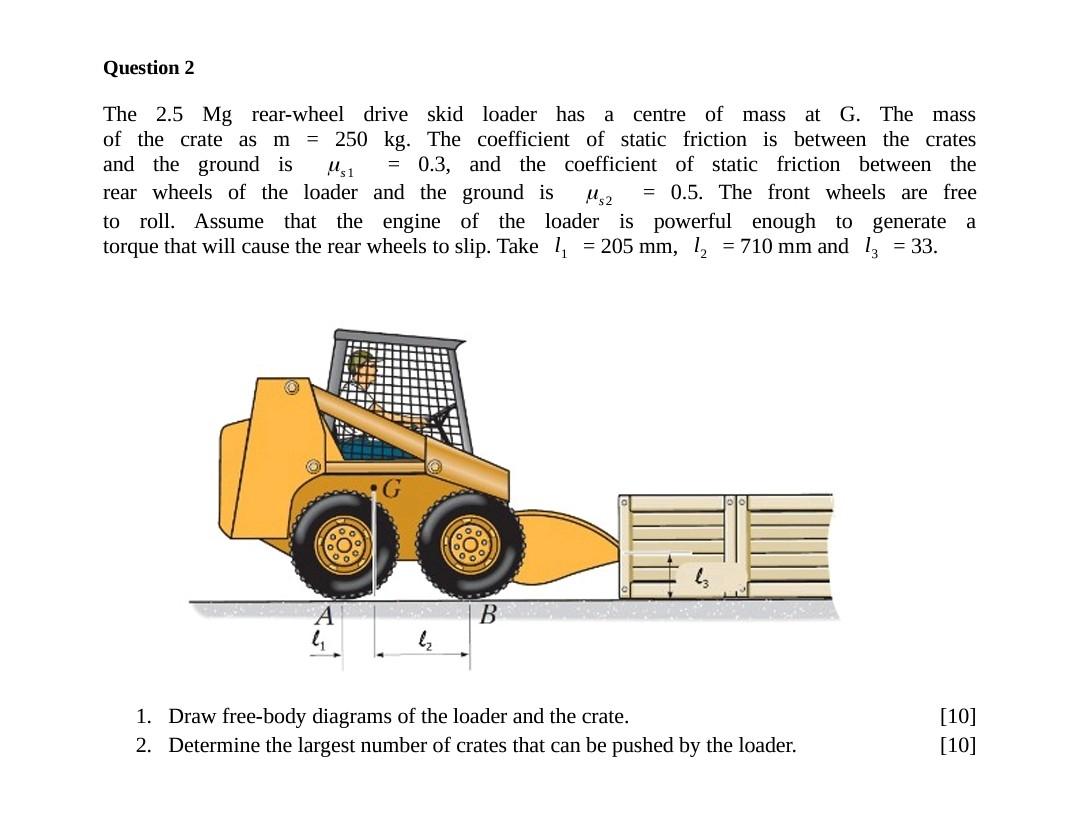

Question 2 us1 The 2.5 Mg rear-wheel drive skid loader has a centre of mass at G. The mass of the crate as m = 250 kg. The coefficient of static friction is between the crates and the ground is 0.3, and the coefficient of static friction between the rear wheels of the loader and the ground is Ms2 = 0.5. The front wheels are free to roll. Assume that the engine of the loader is powerful enough to generate a torque that will cause the rear wheels to slip. Take 1₁ = 205 mm, 1₂ = 710 mm and 13 = 33. B 4₁ l₂ [10] 1. Draw free-body diagrams of the loader and the crate. [10] 2. Determine the largest number of crates that can be pushed by the loader. A (800)
