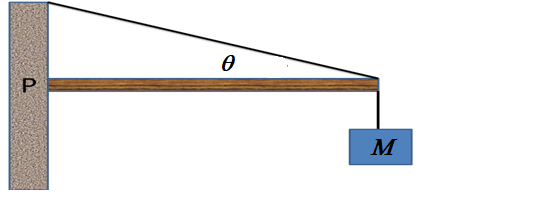

A beam of weight 117 N and length 4.9 m is attached to the wall
at point P. A cable that makes an angle of θ = 37° with the
horizontal is attached at the far end of the beam. A block of mass
M = 11.1 kg is hung from a rope at the end of the beam.
1 (33.6 KiB) Viewed 32 times
Find the tension in the
cable, T which will keep the
beam in equilibrium.
What is the x-component of the
reaction force acting on the beam at
point P?
What is the Y-component of the
reaction force acting on the beam at
point P?
P Ө M
