The figure below shows a system consisting of a block of mass 5 kg and a wedge that are moving to the right with a commo
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The figure below shows a system consisting of a block of mass 5 kg and a wedge that are moving to the right with a commo

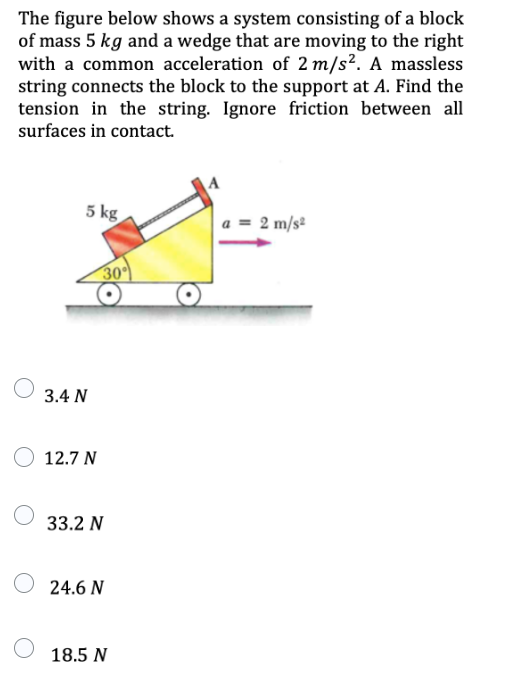

The figure below shows a system consisting of a block of mass 5 kg and a wedge that are moving to the right with a common acceleration of 2 m/s². A massless string connects the block to the support at A. Find the tension in the string. Ignore friction between all surfaces in contact. 5 kg a = 2 m/s² 30% 3.4 N 12.7 N 33.2 N 24.6 N 18.5 N
