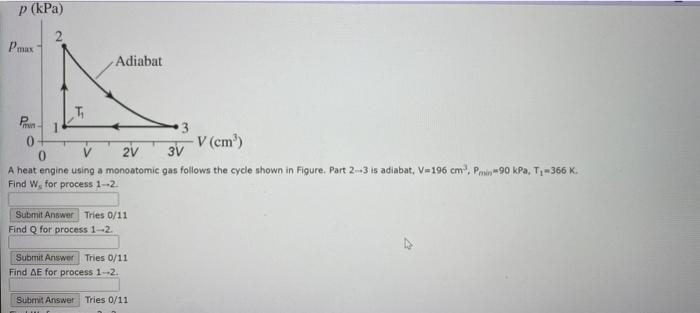

p (kPa) 2 Pmax P Adiabat 0 V (cm³) 2V 3V A heat engine using a monoatomic gas follows the cycle shown in Figure. Part 2-3 is adiabat, V-196 cm³, Pmin 90 kPa, T₁-366 K. Find W, for process 1-2. Submit Answer Tries 0/11 Find Q for process 1-2. Submit Answer Tries 0/11 Find AE for process 1-2. Submit Answer Tries 0/11 LINE

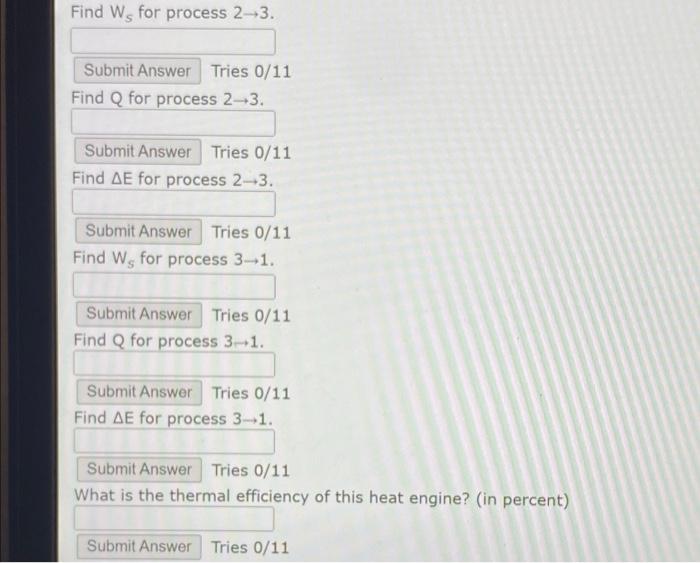

Find W, for process 2-3. Submit Answer Tries 0/11 Find Q for process 2-3. Submit Answer Tries 0/11 Find AE for process 2-3. Submit Answer Tries 0/11 Find Ws for process 3-1. Submit Answer Tries 0/11 Find Q for process 3-1. Submit Answer Tries 0/11 Find AE for process 3-1. Submit Answer Tries 0/11 What is the thermal efficiency of this heat engine? (in percent) Submit Answer Tries 0/11
