You open a restaurant and hope to entice customers by hanging out a sign (Figure 1). The uniform horizontal beam support

[answerhappygod]

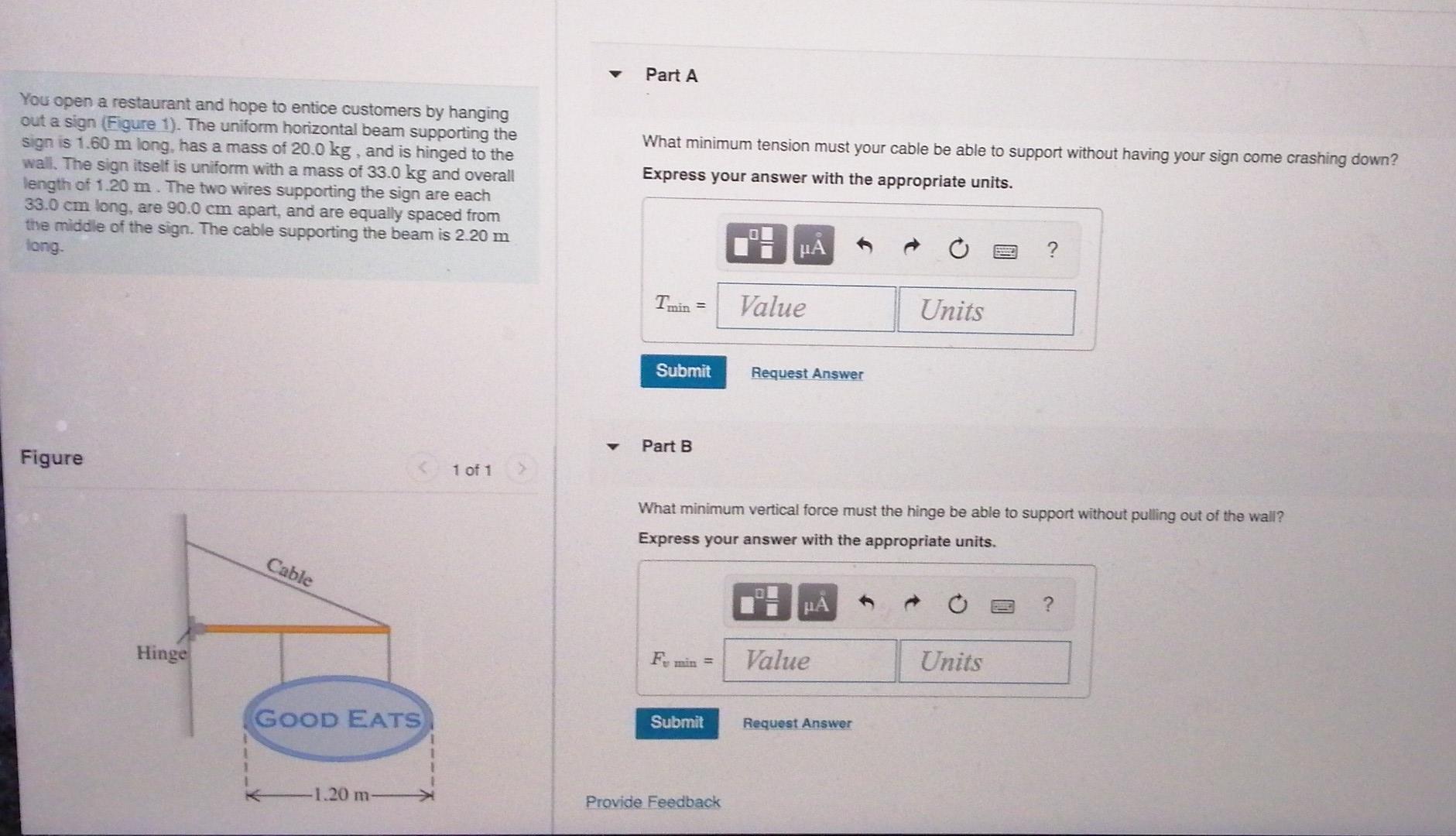

You Open A Restaurant And Hope To Entice Customers By Hanging Out A Sign Figure 1 The Uniform Horizontal Beam Support 1 (184.84 KiB) Viewed 45 times

You open a restaurant and hope to entice customers by hanging out a sign (Figure 1). The uniform horizontal beam supporting the sign is 1.60 m long, has a mass of 20.0 kg, and is hinged to the wall. The sign itself is uniform with a mass of 33.0 kg and overall length of 1.20 m. The two wires supporting the sign are each 33.0 cm long, are 90.0 cm apart, and are equally spaced from the middle of the sign. The cable supporting the beam is 2.20 m long- 1 of 1 Figure Cable Hinge GOOD EATS -1.20 m- Part A What minimum tension must your cable be able to support without having your sign come crashing down? Express your answer with the appropriate units. μA Tmin= Value Units Request Answer Part B What minimum vertical force must the hinge be able to support without pulling out of the wall? Express your answer with the appropriate units. μA E Fe min = Value Units Submit Request Answer Provide Feedback ▼ Submit
