- L1 C1 Hh 100mh 0 1u R1 1k Voff 0 Vampl 5 Freq 1k Ac 0 0 Measure Vo Peak To Peak And Estimate The Phase Shift Of 1 (65.57 KiB) Viewed 34 times
L1 C1 HH 100mH 0.1u R1 1k VOFF = 0 VAMPL = 5 FREQ = 1K AC = 0 0 Measure Vo peak -to-peak and estimate the phase shift of
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
L1 C1 HH 100mH 0.1u R1 1k VOFF = 0 VAMPL = 5 FREQ = 1K AC = 0 0 Measure Vo peak -to-peak and estimate the phase shift of

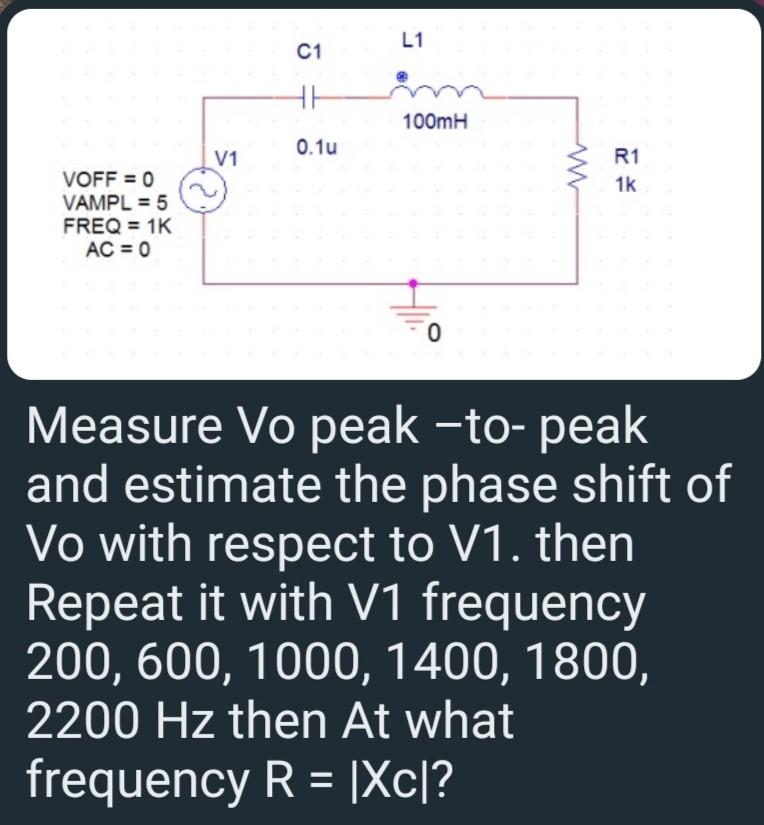

L1 C1 HH 100mH 0.1u R1 1k VOFF = 0 VAMPL = 5 FREQ = 1K AC = 0 0 Measure Vo peak -to-peak and estimate the phase shift of Vo with respect to V1. then Repeat it with V1 frequency 200, 600, 1000, 1400, 1800, 2200 Hz then At what frequency R = |xc|? V1 www
