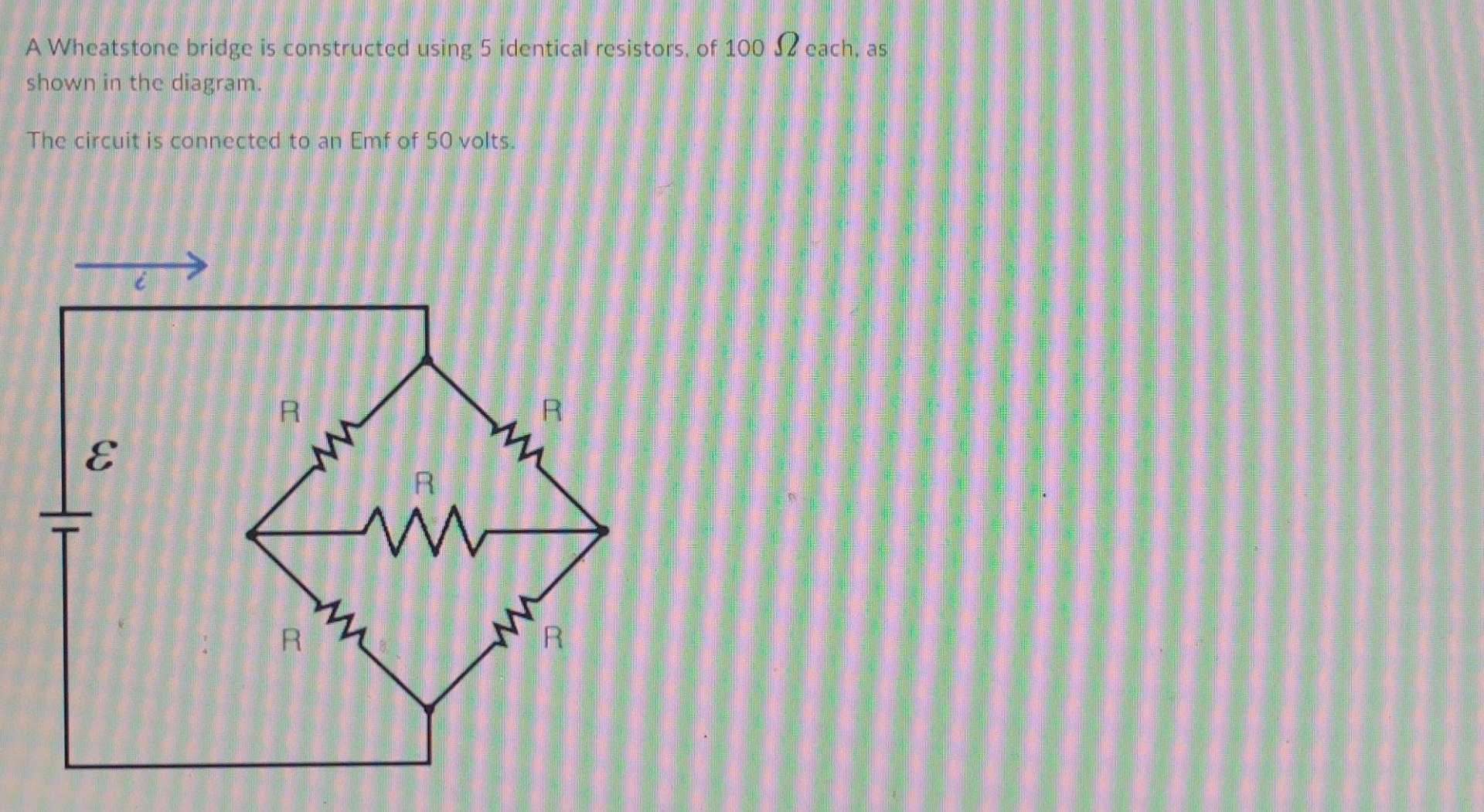

A Wheatstone bridge is constructed using 5 identical resistors, of 100 2 cach, as shown in the diagram. The circuit is connected to an Emf of 50 volts. R E R R i R R

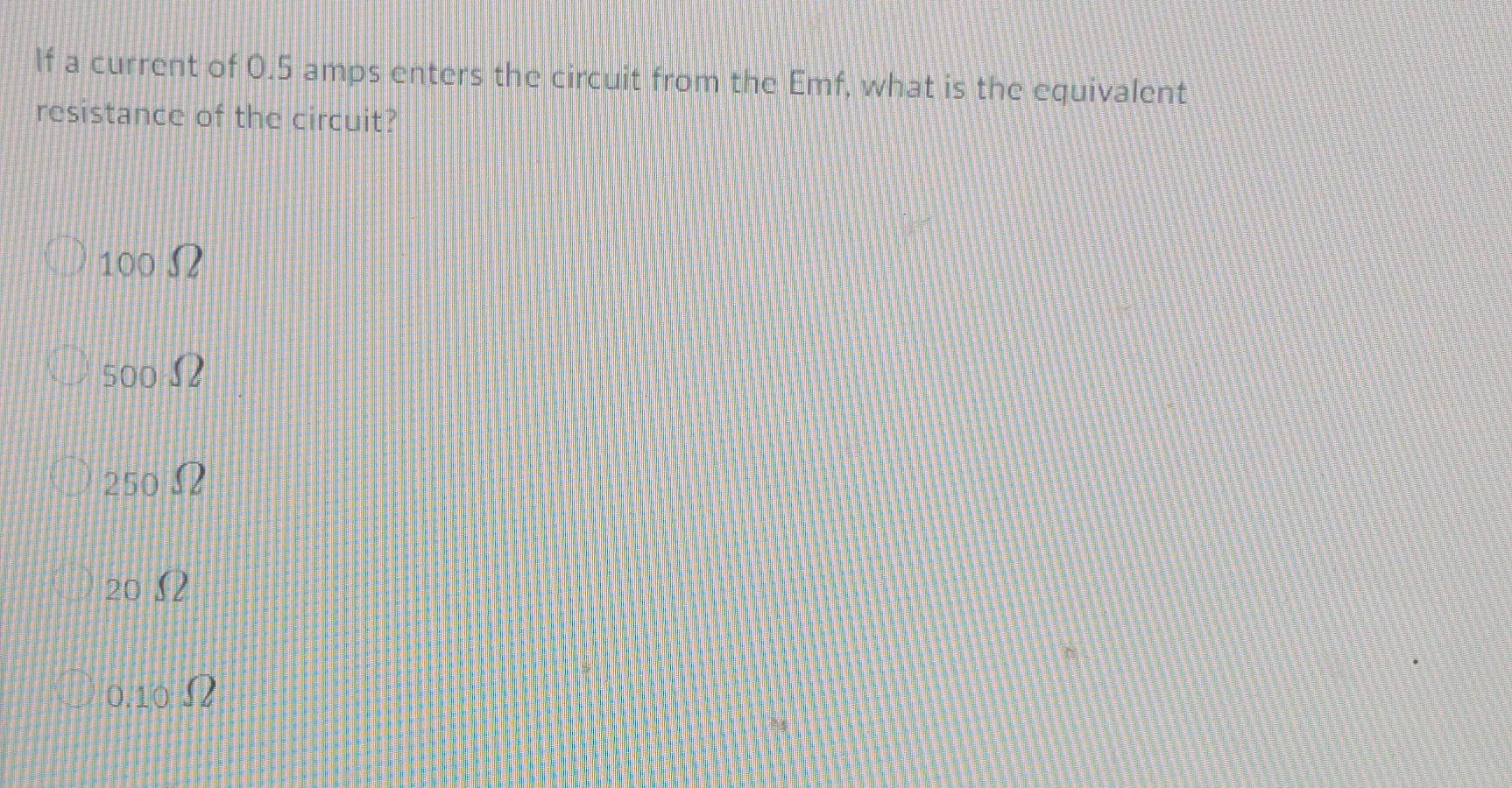

If a current of 0.5 amps enters the circuit from the Emf, what is the equivalent resistance of the circuit? 100 S2 500-2 250 20 2 0.10 2
