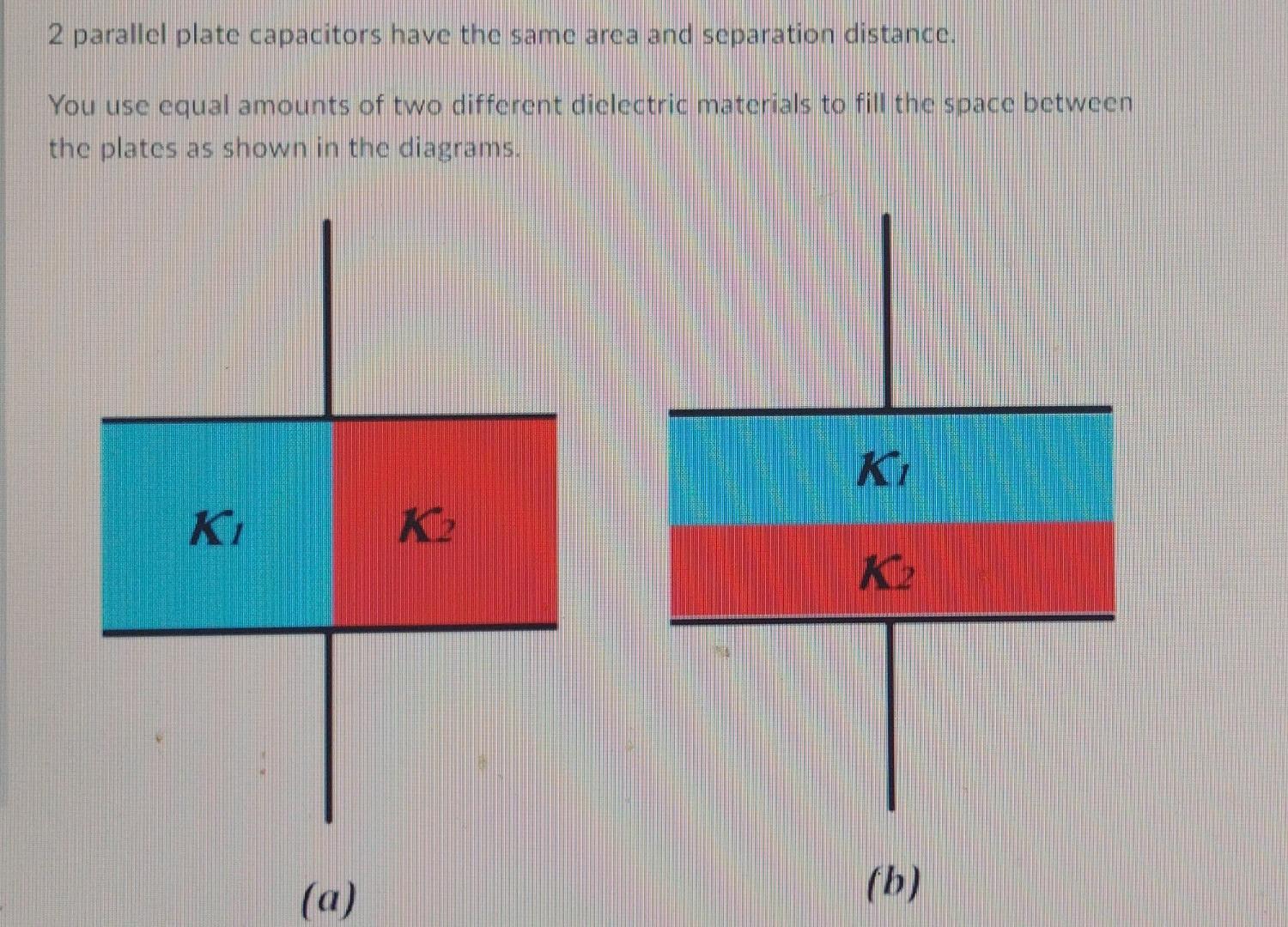

2 parallel plate capacitors have the same area and separation distance. You use equal amounts of two different dielectric materials to fill the space between the plates as shown in the diagrams. KI K K K₂ (a) (b)

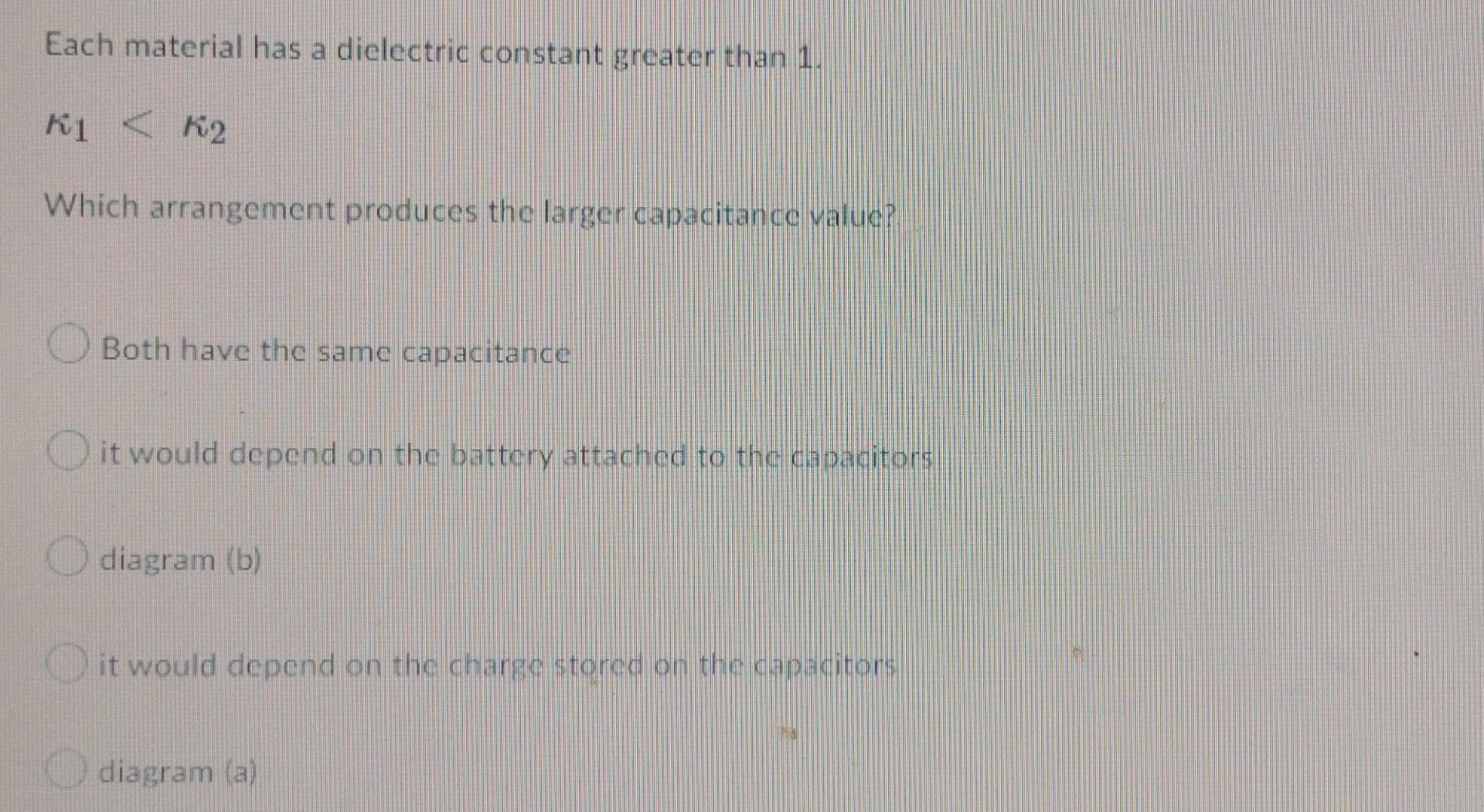

Each material has a dielectric constant greater than 1. K1 K₂ Which arrangement produces the larger capacitance value? Both have the same capacitance it would depend on the battery attached to the capacitors diagram (b) it would depend on the charge stored on the capacitors diagram (a)
