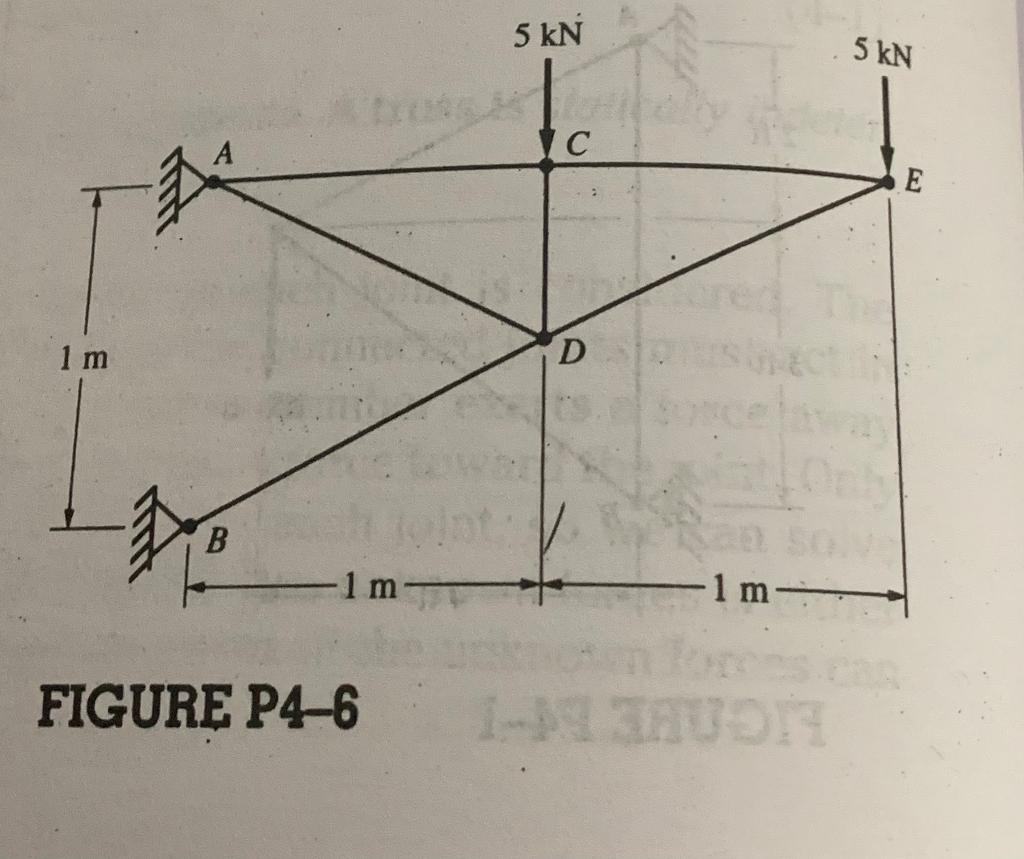

1 M B 1 M Figure P4 6 5 Kn C D 1 M 1 Audi 5 Kn E 1 (78.74 KiB) Viewed 33 times
The magnitude of the internal force in member CD ____kN
The state of the internal force in member CD _______
The magnitude of the internal force in member CE _______ kN
The state of the internal force in member CE _______
The Magnitude of the internal force in member DE ____kN
The state of the internal force in member DE ________
1 m B 1 m FIGURE P4-6 5 kN C D 1 m 1- AUDI 5 kN E
