6. Consider the following real Amplifier circuit diagram, a) What assumptions would make the op-amp as a real Op-amp? b)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
6. Consider the following real Amplifier circuit diagram, a) What assumptions would make the op-amp as a real Op-amp? b)

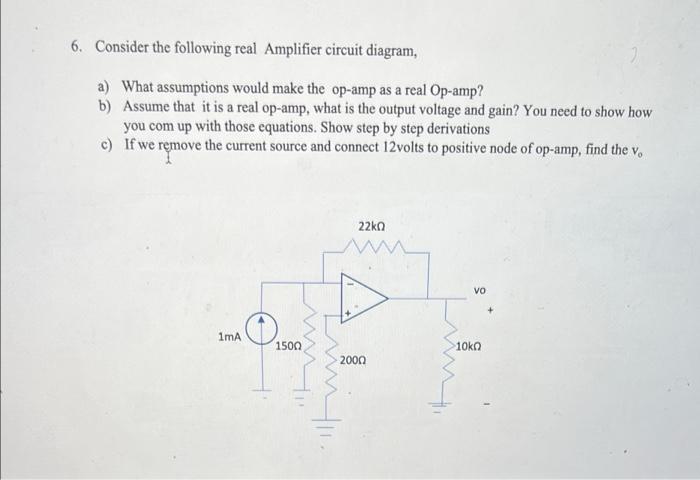

6. Consider the following real Amplifier circuit diagram, a) What assumptions would make the op-amp as a real Op-amp? b) Assume that it is a real op-amp, what is the output voltage and gain? You need to show how you com up with those equations. Show step by step derivations c) If we remove the current source and connect 12volts to positive node of op-amp, find the v. 22ΚΩ vo 1mA 1500 2000 10k0
