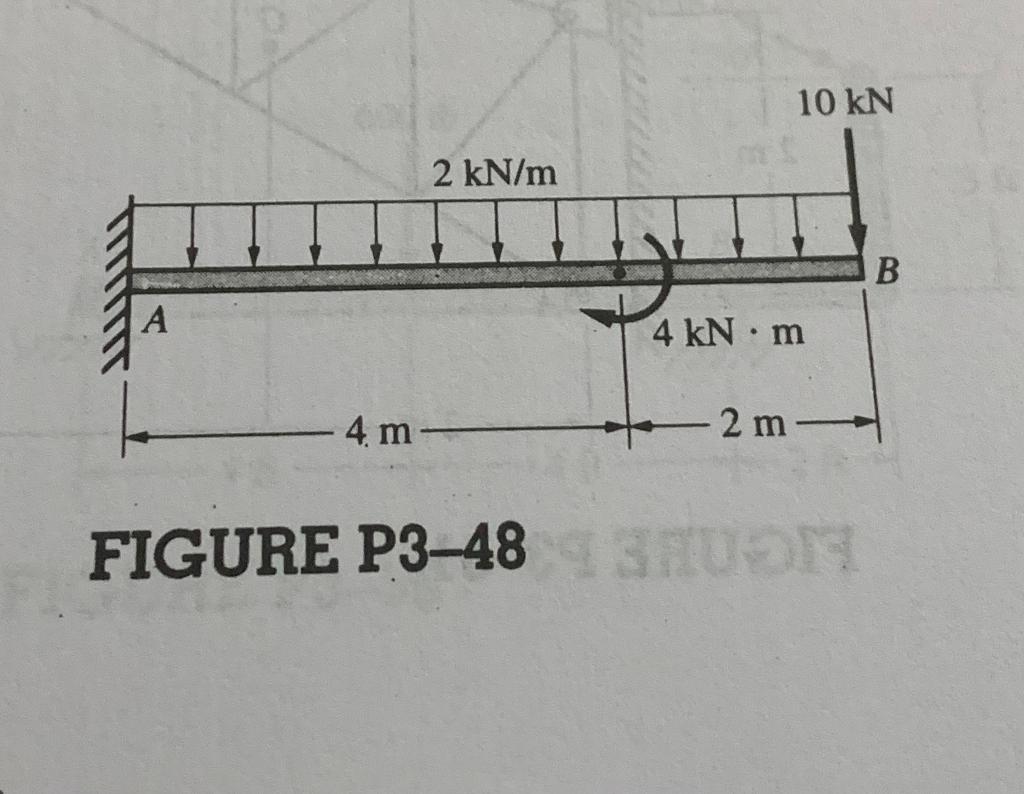

- 2 Kn M A 4 M Figure P3 48 10 Kn 4 Kn M 2 M Gruon B 1 (79.67 KiB) Viewed 27 times
Magnitude of the intensity of the distrubted load is______
kN/m
The magnitude of the resultant of the distributed load
________kN
The location of the application of the resultant of the
distributed load is at ________m to the right of A
The Magnitude of the X-component of the reaction force is
______kN
The direction of the x component of the reaction force is
_______
The magnitude of the y component of the reaction force is_______
kN
The direction of the y component of the reaction force is
_________
The magnitude of the reaction moment is kN-m_________
The direction of the reaction moment is _________
2 kN/m A 4 m- FIGURE P3-48 10 kN 4 kN m 2 m GRUON B
