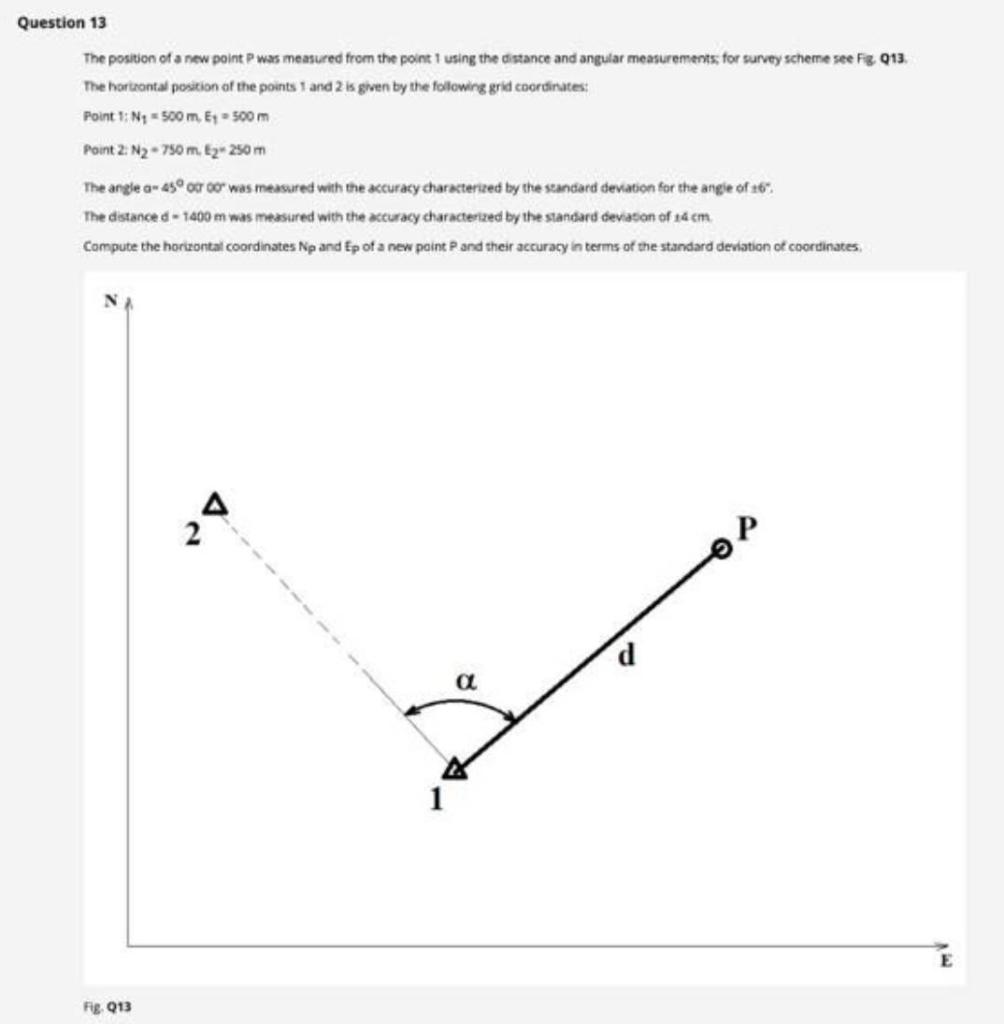

Question 13 The position of a new point P was measured from the point 1 using the distance and angular measurements; for

[answerhappygod]

Question 13 The Position Of A New Point P Was Measured From The Point 1 Using The Distance And Angular Measurements For 1 (43.92 KiB) Viewed 30 times

Question 13 The position of a new point P was measured from the point 1 using the distance and angular measurements; for survey scheme see Fig. Q13. The horizontal position of the points 1 and 2 is given by the following grid coordinates: Point 1: N₁500 m. Ey - 500 m Point 2: N₂ 750 m. ₂- 250 m The angle a-45° or oor was measured with the accuracy characterized by the standard deviation for the angle of 16. The distance d-1400 m was measured with the accuracy characterized by the standard deviation of 14 cm. Compute the horizontal coordinates Np and Ep of a new point P and their accuracy in terms of the standard deviation of coordinates. a Fig. Q13 1
