- Problem 1 15 Points The Schematic Of A Vehicle Suspension System Is Shown Below The Vehicle Is Moving To The Right A 1 (345.09 KiB) Viewed 37 times

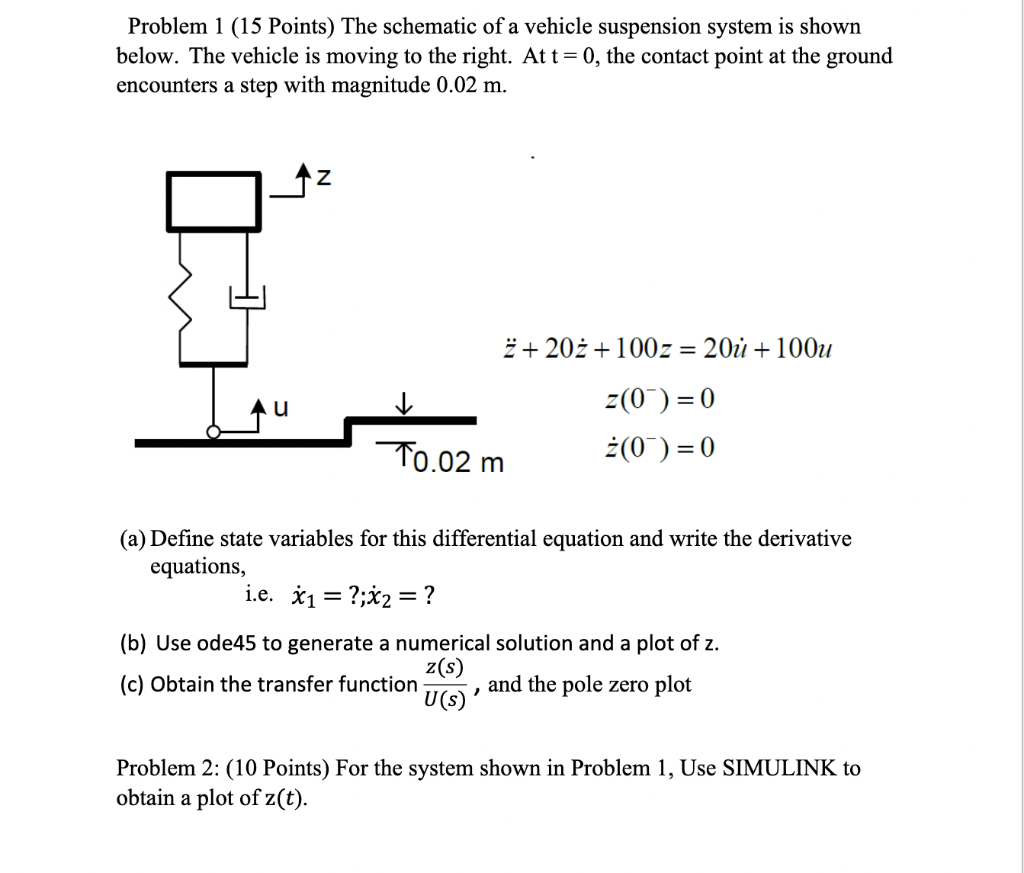

Problem 1 (15 Points) The schematic of a vehicle suspension system is shown below. The vehicle is moving to the right. At t = 0, the contact point at the ground encounters a step with magnitude 0.02 m. Z ż+ 20ż + 100z = 20ů + 100u Z(0) = 0 To.02 m ż(0) = 0 (a) Define state variables for this differential equation and write the derivative equations, i.e. x₁ = ?;x2 = ? (b) Use ode45 to generate a numerical solution and a plot of z. z(s) (c) Obtain the transfer function and the pole zero plot U(s)' Problem 2: (10 Points) For the system shown in Problem 1, Use SIMULINK to obtain a plot of z(t).
