(10 pts) For the 1-element Wheatstone bridge as shown, the input voltage is 12 (V). What is the output voltage Vo if R₁
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(10 pts) For the 1-element Wheatstone bridge as shown, the input voltage is 12 (V). What is the output voltage Vo if R₁

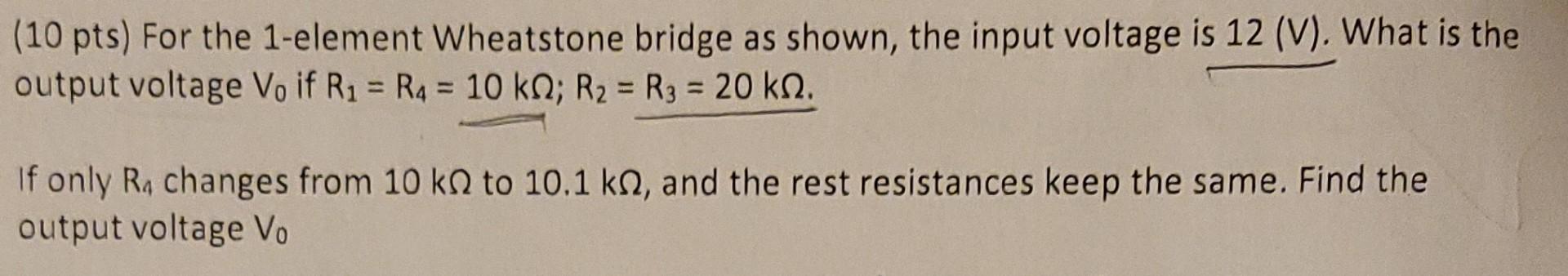

(10 pts) For the 1-element Wheatstone bridge as shown, the input voltage is 12 (V). What is the output voltage Vo if R₁ = R4 = 10 kQ; R₂ = R3 = 20 kn. If only R4 changes from 10 k to 10.1 kn, and the rest resistances keep the same. Find the output voltage Vo
