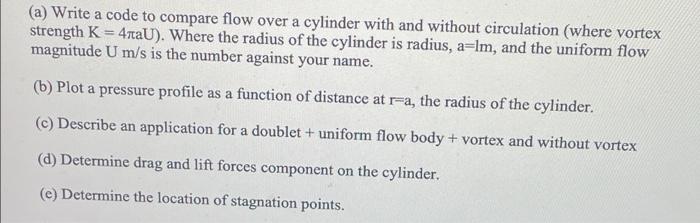

(a) Write a code to compare flow over a cylinder with and without circulation (where vortex strength K=4naU). Where the radius of the cylinder is radius, a-lm, and the uniform flow magnitude U m/s is the number against your name. (b) Plot a pressure profile as a function of distance at r-a, the radius of the cylinder. (c) Describe an application for a doublet + uniform flow body + vortex and without vortex (d) Determine drag and lift forces component on the cylinder. (e) Determine the location of stagnation points.

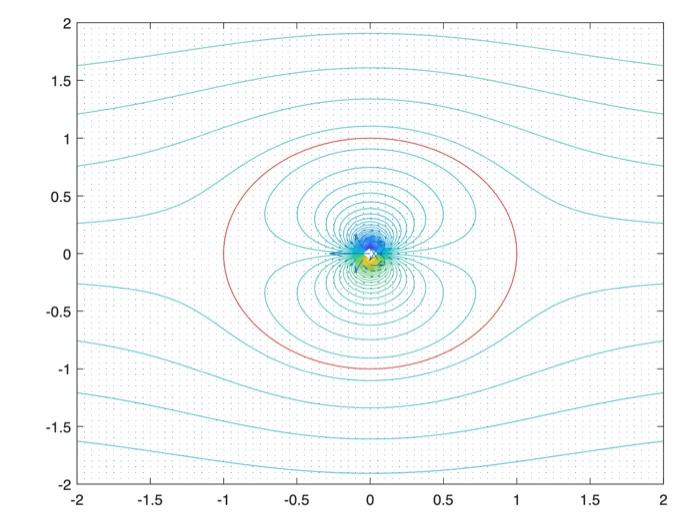

2 1.5 1 0.5 O -0.5 -1 -1.5 -2 -2 -1.5 -0.5 0 0.5 1.5 2
