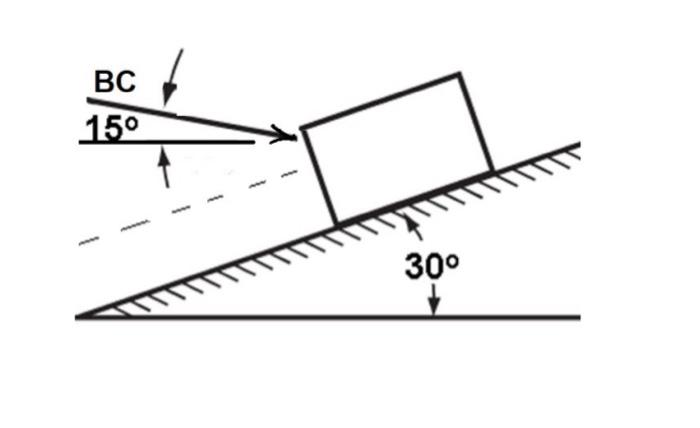

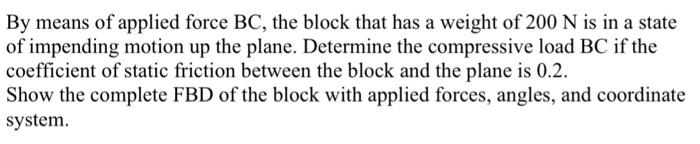

By means of applied force BC, the block that has a weight of 200 N is in a state of impending motion up the plane. Determine the compressive load BC if the coefficient of static friction between the block and the plane is 0.2. Show the complete FBD of the block with applied forces, angles, and coordinate system.
ВС 15⁰ 30⁰
