2. Question 2 [24] A Slider crank mechanism is shown in Figure 2.1. The dimensions of various links are BI = 28mm, IH =

[answerhappygod]

2 Question 2 24 A Slider Crank Mechanism Is Shown In Figure 2 1 The Dimensions Of Various Links Are Bi 28mm Ih 1 (48.56 KiB) Viewed 23 times

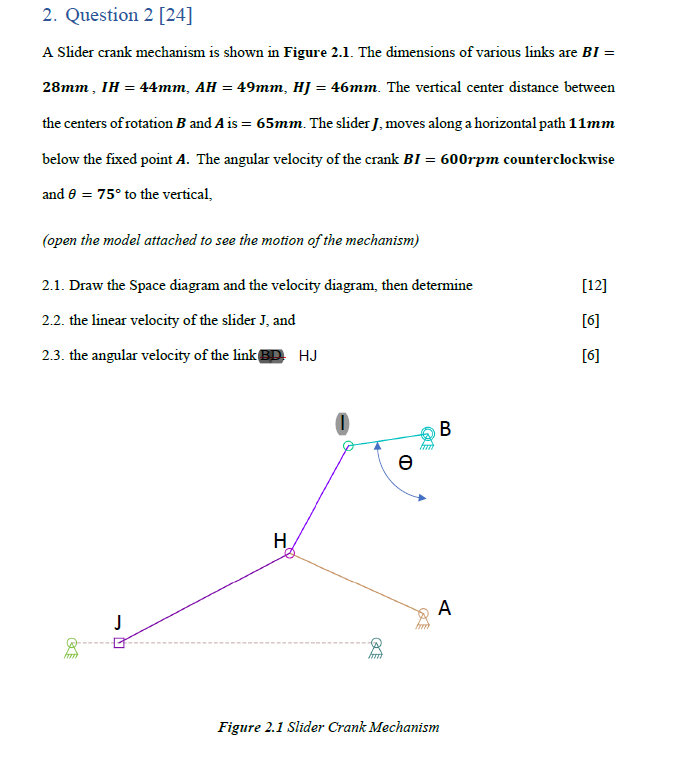

2. Question 2 [24] A Slider crank mechanism is shown in Figure 2.1. The dimensions of various links are BI = 28mm, IH = 44mm, AH = 49mm, HJ = 46mm. The vertical center distance between the centers of rotation B and A is = 65mm. The slider J, moves along a horizontal path 11mm below the fixed point A. The angular velocity of the crank BI = 600rpm counterclockwise and 0 = 75° to the vertical, (open the model attached to see the motion of the mechanism) 2.1. Draw the Space diagram and the velocity diagram, then determine [12] 2.2. the linear velocity of the slider J, and [6] 2.3. the angular velocity of the link BD HJ [6] B H A J Figure 2.1 Slider Crank Mechanism e
