In the final stages of production, a pharmaceutical is sterilized by heating it from 25 to 75°C as it moves at 0.21 m/s

[answerhappygod]

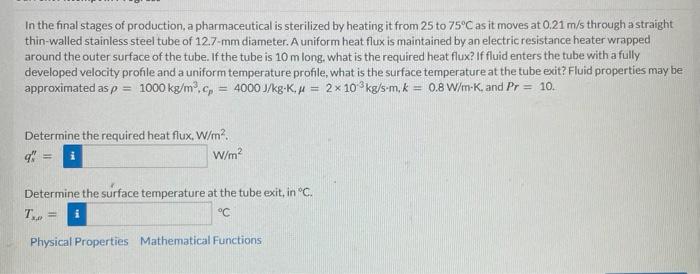

In The Final Stages Of Production A Pharmaceutical Is Sterilized By Heating It From 25 To 75 C As It Moves At 0 21 M S 1 (33.53 KiB) Viewed 34 times

In the final stages of production, a pharmaceutical is sterilized by heating it from 25 to 75°C as it moves at 0.21 m/s through a straight thin-walled stainless steel tube of 12.7-mm diameter. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the tube. If the tube is 10 m long, what is the required heat flux? If fluid enters the tube with a fully developed velocity profile and a uniform temperature profile, what is the surface temperature at the tube exit? Fluid properties may be approximated as p = 1000 kg/m³.cp- = 4000 J/kg-K, μ = 2x 10³ kg/s-m, k = 0.8 W/m-K, and Pr = 10. Determine the required heat flux, W/m². 9" = W/m² Determine the surface temperature at the tube exit, in °C. T₁ = i °℃ Physical Properties Mathematical Functions
