A D B A uniform thin shelf AB of length 2m and weight 100N is hinged to the wall at a and is supported by a chain CD. Ad
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A D B A uniform thin shelf AB of length 2m and weight 100N is hinged to the wall at a and is supported by a chain CD. Ad

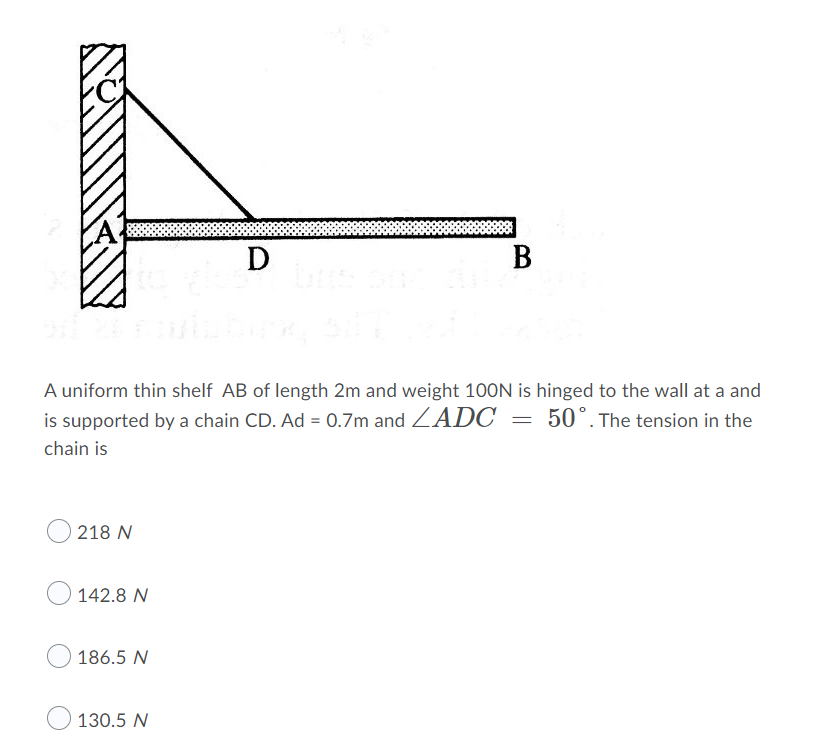

A D B A uniform thin shelf AB of length 2m and weight 100N is hinged to the wall at a and is supported by a chain CD. Ad = 0.7m and ZADC = 50°. The tension in the chain is 218 N 142.8 N 186.5 N 130.5 N
