For the frame shown in Figure 3, member BC has a 6-inch square cross section Determine the greatest force F that the fra

Post by answerhappygod »

For The Frame Shown In Figure 3 Member Bc Has A 6 Inch Square Cross Section Determine The Greatest Force F That The Fra 1
For The Frame Shown In Figure 3 Member Bc Has A 6 Inch Square Cross Section Determine The Greatest Force F That The Fra 1 (284.86 KiB) Viewed 36 times

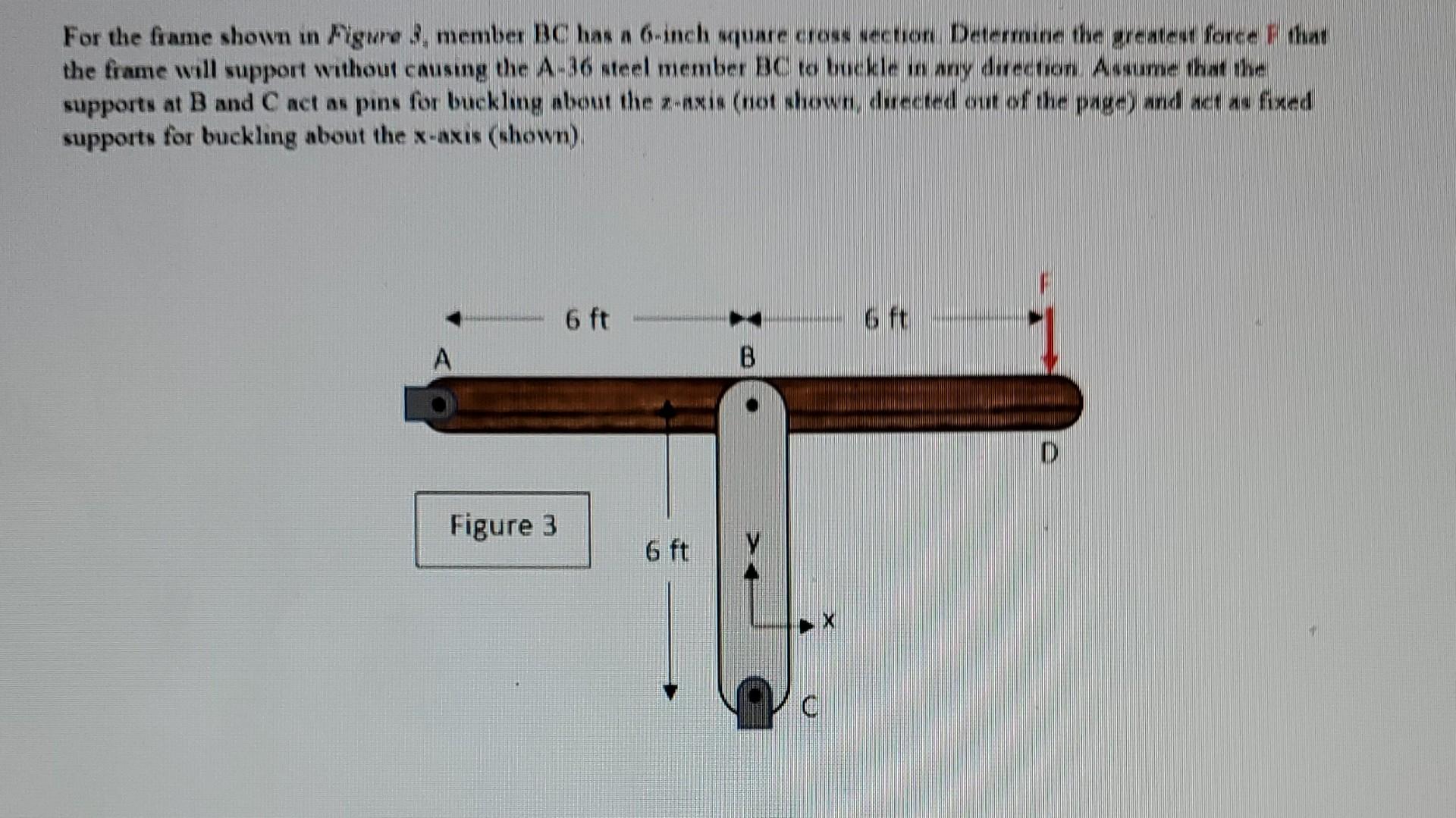

For the frame shown in Figure 3, member BC has a 6-inch square cross section Determine the greatest force F that the frame will support without causing the A-36 steel member BC to buckle in any direction. Assume that the supports at B and C act as pins for buckling about the z-axis (not shown, directed out of the page) and act as fixed supports for buckling about the x-axis (shown). 6 ft A B D Figure 3 6 ft C
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
