In the following figure, consider shaft B together with gears 2 and 3 as the free body. The tooth forces for these gears

[answerhappygod]

In The Following Figure Consider Shaft B Together With Gears 2 And 3 As The Free Body The Tooth Forces For These Gears 1 (77.7 KiB) Viewed 31 times

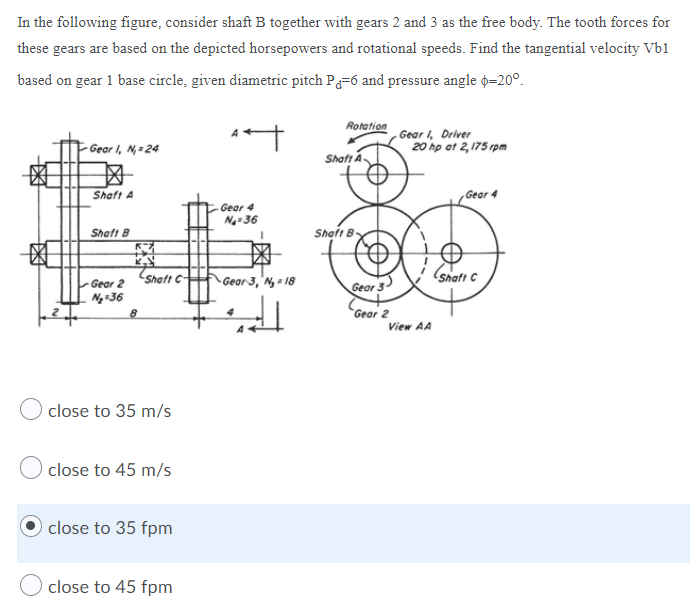

In the following figure, consider shaft B together with gears 2 and 3 as the free body. The tooth forces for these gears are based on the depicted horsepowers and rotational speeds. Find the tangential velocity Vb1 based on gear 1 base circle, given diametric pitch P=6 and pressure angle -20°. Rotation A++ Gear I, Driver -Gear I, N, = 24 20 hp at 2,175 rpm Shaft A Gear 4 Shaft B Gear 2 N₂=36 8 close to 35 m/s close to 45 m/s close to 35 fpm close to 45 fpm Shaft C- -Gear 4 N₂=36 Gear 3, N₂ = 18 2 Shaft A- Shaft B- Gear 3 Gear 2 View AA Shaft C
