Write the expression for torque and the maximum lining pressure in terms of T2 for the brake shown in Figure (a) with th

[answerhappygod]

Write The Expression For Torque And The Maximum Lining Pressure In Terms Of T2 For The Brake Shown In Figure A With Th 1 (76.77 KiB) Viewed 35 times

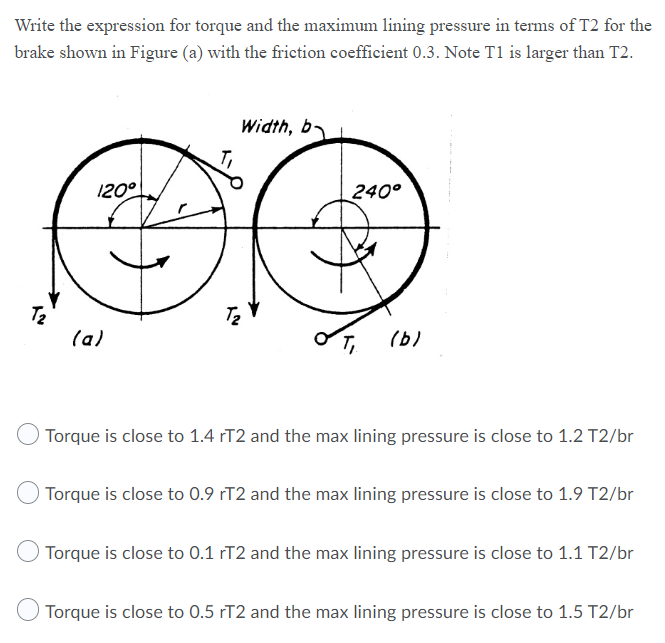

Write the expression for torque and the maximum lining pressure in terms of T2 for the brake shown in Figure (a) with the friction coefficient 0.3. Note T1 is larger than T2. Width, b 120° 240° T₂ (a) (b) Torque is close to 1.4 rT2 and the max lining pressure is close to 1.2 T2/br Torque is close to 0.9 rT2 and the max lining pressure is close to 1.9 T2/br Torque is close to 0.1 rT2 and the max lining pressure is close to 1.1 T2/br Torque is close to 0.5 rT2 and the max lining pressure is close to 1.5 T2/br T₂
