21. Datum feature symbols are placed on the view where the surface appears as a(n) a. surface b. edge c. plane d. featur

Post by answerhappygod »

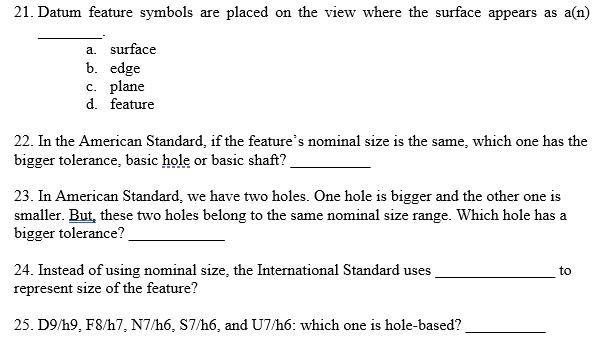

21 Datum Feature Symbols Are Placed On The View Where The Surface Appears As A N A Surface B Edge C Plane D Featur 1
21 Datum Feature Symbols Are Placed On The View Where The Surface Appears As A N A Surface B Edge C Plane D Featur 1 (41.35 KiB) Viewed 39 times
21. Datum feature symbols are placed on the view where the surface appears as a(n) a. surface b. edge c. plane d. feature 22. In the American Standard, if the feature's nominal size is the same, which one has the bigger tolerance, basic hole or basic shaft? 23. In American Standard, we have two holes. One hole is bigger and the other one is smaller. But, these two holes belong to the same nominal size range. Which hole has a bigger tolerance? to 24. Instead of using nominal size, the International Standard uses represent size of the feature? 25. D9/h9, F8/h7, N7/h6, S7/h6, and U7/h6: which one is hole-based?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
