3. The bolted connection shown in the figure uses SAE grade 8 bolts. The members are hot-rolled AISI 1040 steel. A tensi

Post by answerhappygod »

3 The Bolted Connection Shown In The Figure Uses Sae Grade 8 Bolts The Members Are Hot Rolled Aisi 1040 Steel A Tensi 1
3 The Bolted Connection Shown In The Figure Uses Sae Grade 8 Bolts The Members Are Hot Rolled Aisi 1040 Steel A Tensi 1 (21.64 KiB) Viewed 36 times

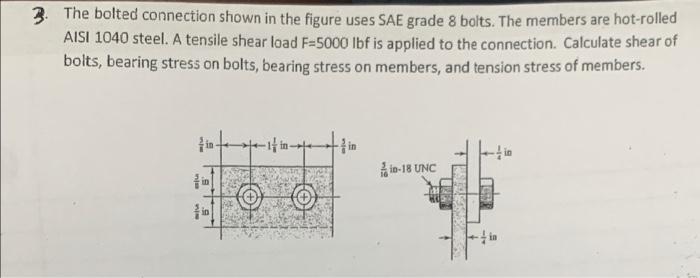

3. The bolted connection shown in the figure uses SAE grade 8 bolts. The members are hot-rolled AISI 1040 steel. A tensile shear load F-5000 lbf is applied to the connection. Calculate shear of bolts, bearing stress on bolts, bearing stress on members, and tension stress of members. in in-18 UNC inja nis
