For the concrete mixer gears described in question 1, determine the contact ratio.

Post by answerhappygod »

For the concrete mixer gears described in question 1, determine the contact ratio.
For The Concrete Mixer Gears Described In Question 1 Determine The Contact Ratio 1
For The Concrete Mixer Gears Described In Question 1 Determine The Contact Ratio 1 (28.08 KiB) Viewed 44 times
For The Concrete Mixer Gears Described In Question 1 Determine The Contact Ratio 2
For The Concrete Mixer Gears Described In Question 1 Determine The Contact Ratio 2 (16.77 KiB) Viewed 44 times

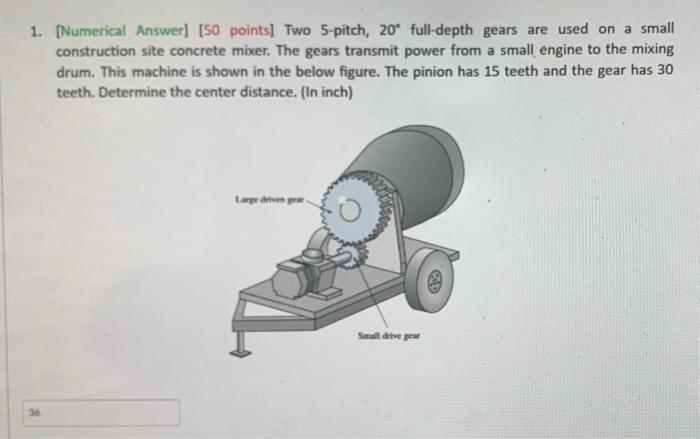

1. [Numerical Answer] [50 points] Two 5-pitch, 20 full-depth gears are used on a small construction site concrete mixer. The gears transmit power from a small engine to the mixing drum. This machine is shown in the below figure. The pinion has 15 teeth and the gear has 30 teeth. Determine the center distance. (In inch) Small drive gear 36

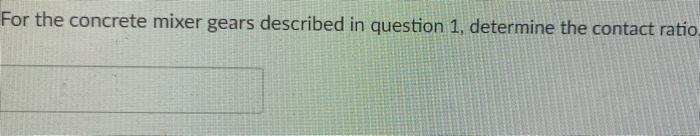

For the concrete mixer gears described in question 1, determine the contact ratio.
