Q1: An Electric vehicle accelerates from 0 to 50 kmph in 20 sec, where the drive train shown in figure below. It then tr

[answerhappygod]

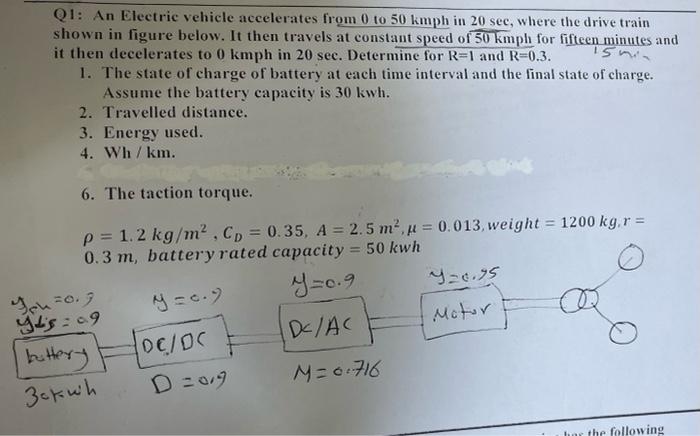

Q1 An Electric Vehicle Accelerates From 0 To 50 Kmph In 20 Sec Where The Drive Train Shown In Figure Below It Then Tr 1 (39.5 KiB) Viewed 32 times

Q1: An Electric vehicle accelerates from 0 to 50 kmph in 20 sec, where the drive train shown in figure below. It then travels at constant speed of 50 kmph for fifteen minutes and it then decelerates to 0 kmph in 20 sec. Determine for R=1 and R=0.3. 15min 1. The state of charge of battery at each time interval and the final state of charge. Assume the battery capacity is 30 kwh. 2. Travelled distance. 3. Energy used. 4. Wh / km. 6. The taction torque. p = 1.2 kg/m², Cp = 0.35, A = 2.5 m², p=0.013, weight = 1200 kg, r = 0.3 m, battery rated capacity = 50 kwh You =0.9 y=0.9 Y=0.95 y=0.9 Yds: 09 D</AC Motor buttery DC/DC M = 0.716 D=019 3ckwh har the following
