9-94. Figure P9-94 shows a stepped round steel shaft carrying a single load at its middle. Compute the deflection under

Post by answerhappygod »

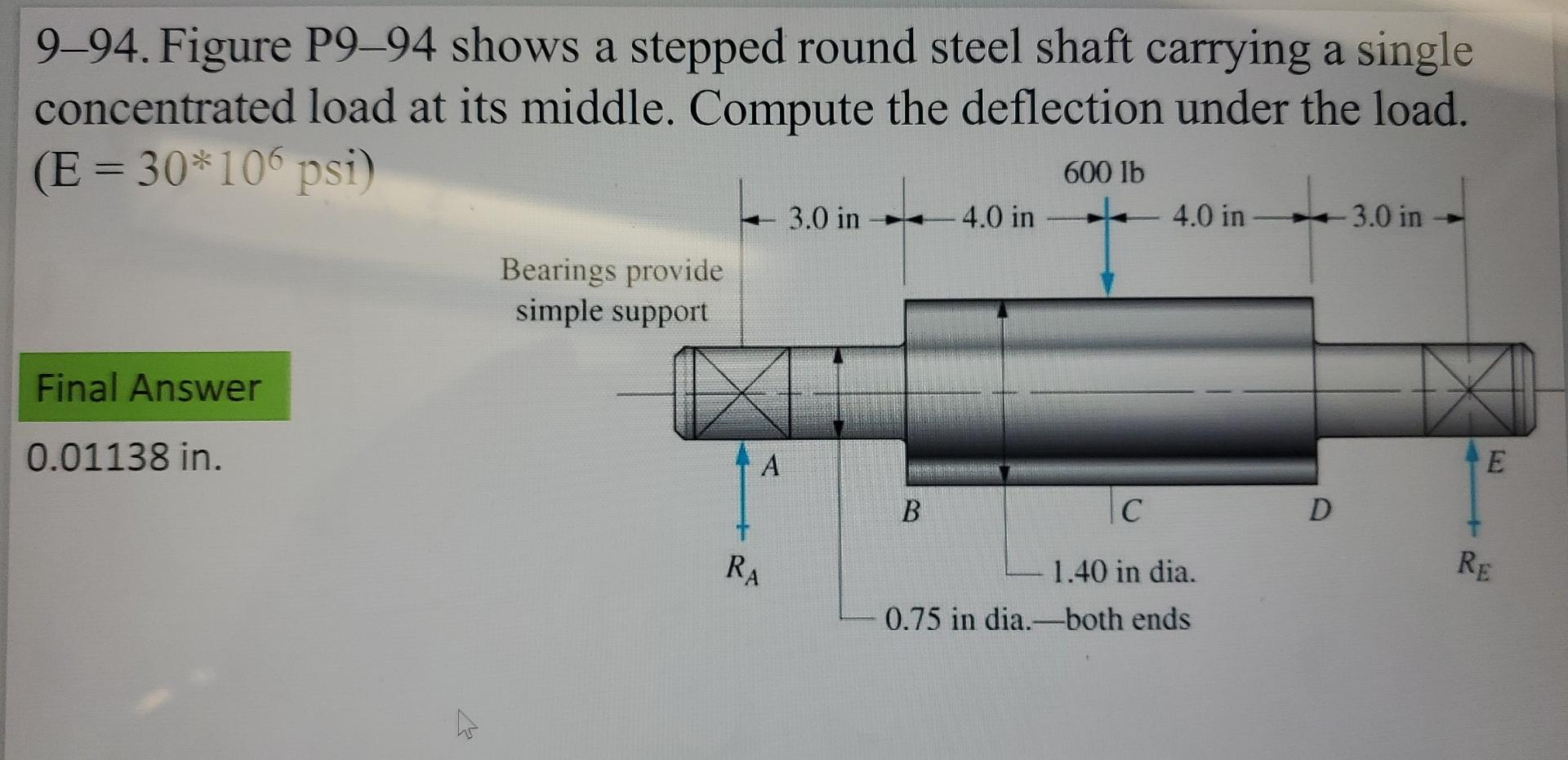

9 94 Figure P9 94 Shows A Stepped Round Steel Shaft Carrying A Single Load At Its Middle Compute The Deflection Under 1
9 94 Figure P9 94 Shows A Stepped Round Steel Shaft Carrying A Single Load At Its Middle Compute The Deflection Under 1 (169.96 KiB) Viewed 34 times
9-94. Figure P9-94 shows a stepped round steel shaft carrying a single load at its middle. Compute the deflection under the load. concentrated (E = 30*106 psi) 600 lb 3.0 in 4.0 in 4.0 in -3.0 in Bearings provide simple support Final Answer 0.01138 in. A RA B C 1.40 in dia. 0.75 in dia.-both ends D E RE
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
